c-Flag pcDNA3
(Plasmid #20011)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 20011 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Cloning Grade DNA 20011-DNA.cg 2 µg of cloning grade DNA in Tris buffer 1 $105

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone manufacturer
    Invitrogen
  • Backbone size (bp) 5400
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    DH5-alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    None
  • Tag / Fusion Protein
    • Flag (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII, XbaI, XhoI (not destroyed)
  • 3′ cloning site KpnI, BamHI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer SP6
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

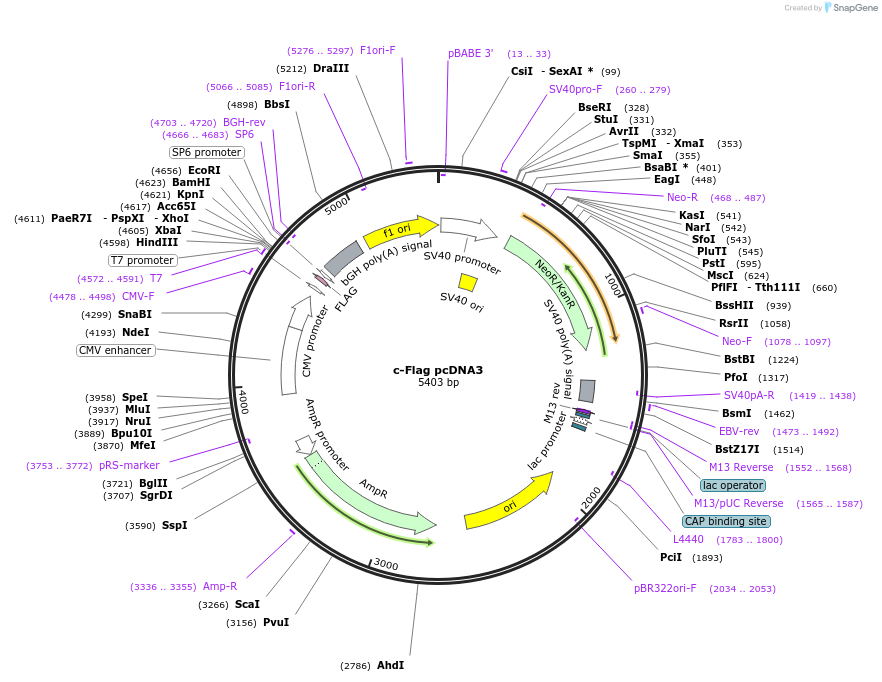

This pcDNA3 plasmid contains a new poly-linker and single c-terminal flag-tag sequence for the expression of NF-kBs in mammalian cell lines. See map for more information.

Information for Cloning Grade DNA (Catalog # 20011-DNA.cg) ( Back to top)

Purpose

Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.

Delivery

  • Amount 2 µg
  • Guaranteed Concentration 100 ng/µl +/- 5 ng/µl
  • Pricing $105 USD
  • Storage DNA can be stored at 4℃ (short term) or -20℃ (long term).

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Addgene has verified this plasmid using Next Generation Sequencing. Results are available here

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    c-Flag pcDNA3 was a gift from Stephen Smale (Addgene plasmid # 20011 ; http://n2t.net/addgene:20011 ; RRID:Addgene_20011)
  • For your References section:

    A c-Rel subdomain responsible for enhanced DNA-binding affinity and selective gene activation. Sanjabi S, Williams KJ, Saccani S, Zhou L, Hoffmann A, Ghosh G, Gerondakis S, Natoli G, Smale ST. Genes Dev. 2005 Sep 15. 19(18):2138-51. 10.1101/gad.1329805 PubMed 16166378
