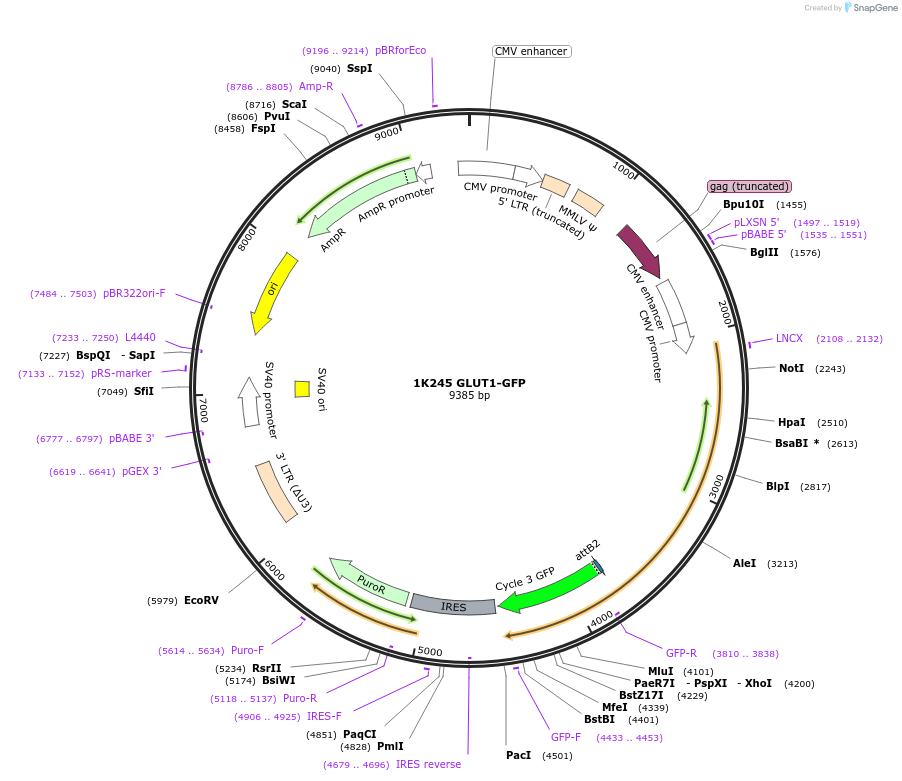

1K245 GLUT1-GFP
(Plasmid #200097)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 200097 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pQCXIP
  • Backbone manufacturer
    ClonTech
  • Backbone size w/o insert (bp) 7400
  • Total vector size (bp) 9409
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GLUT1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2245
  • Mutation
    K-->R mutations of amino acids 6, 7, 225, 229, 230, 255, 256, 451, 456, 477
  • GenBank ID
    NM_006516.4
  • Entrez Gene
    SLC2A1 (a.k.a. CSE, DYT17, DYT18, DYT9, EIG12, GLUT, GLUT-1, GLUT1, GLUT1DS, HTLVR, PED, SDCHCN)
  • Promoter CMV
  • Tag / Fusion Protein
    • GFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BlpI (unknown if destroyed)
  • 3′ cloning site XhoI (unknown if destroyed)
  • 5′ sequencing primer AACCGTCAGATCGCCTGGAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    1K245 GLUT1-GFP was a gift from Jason MacGurn (Addgene plasmid # 200097 ; http://n2t.net/addgene:200097 ; RRID:Addgene_200097)

  • For your References section:

    Lysosomal trafficking of the glucose transporter GLUT1 requires sequential regulation by TXNIP and ubiquitin. Qualls-Histed SJ, Nielsen CP, MacGurn JA. iScience. 2023 Feb 6;26(3):106150. doi: 10.1016/j.isci.2023.106150. eCollection 2023 Mar 17. 10.1016/j.isci.2023.106150 PubMed 36890792
