PurposeExpresses LgBiT, fused to mCherry, in the cytosol of mammalian cells. Can be used in generating stable cell lines via lentiviral transduction.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 199715 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

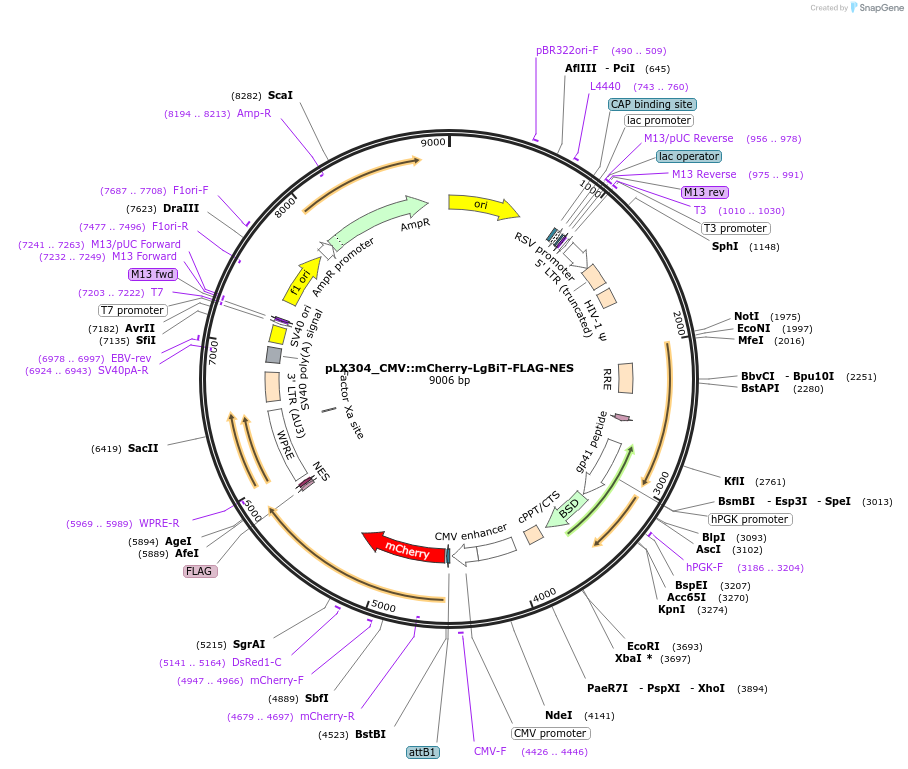

Backbone
-
Vector backbonepLX304
-
Vector typeMammalian Expression, Lentiviral, Luciferase
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemCherry-LgBiT-FLAG-NES
-
SpeciesSynthetic
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F
- 3′ sequencing primer WPRE-R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2023.03.03.531050 for bioRxiv preprint. In the original study XL1 Blue E. coli are used for amplifying plasmids.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLX304_CMV::mCherry-LgBiT-FLAG-NES was a gift from Alice Ting (Addgene plasmid # 199715 ; http://n2t.net/addgene:199715 ; RRID:Addgene_199715) -
For your References section:
Cell-Type-Specific Intracellular Protein Delivery with Inactivated Botulinum Neurotoxin. Roh H, Dorner BG, Ting AY. J Am Chem Soc. 2023 May 10;145(18):10220-10226. doi: 10.1021/jacs.3c01145. Epub 2023 Apr 26. 10.1021/jacs.3c01145 PubMed 37098770
