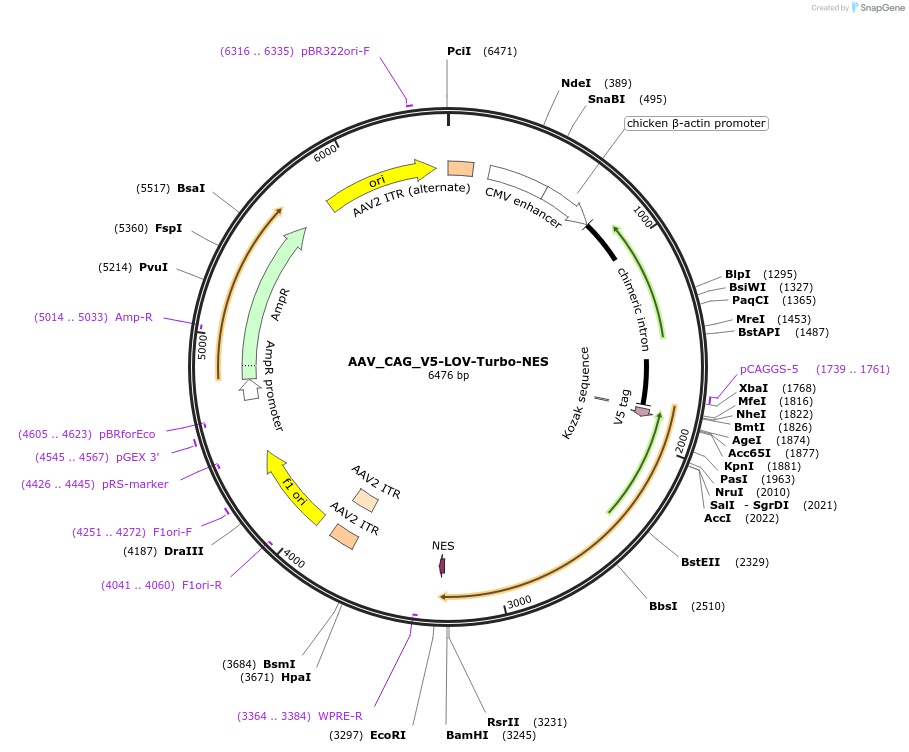

AAV_CAG_V5-LOV-Turbo-NES
(Plasmid #199670)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 199670 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 5031
  • Total vector size (bp) 6489
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    LOV-Turbo
  • Alt name
    Light regulated TurboID
  • Species
    Synthetic
  • Insert Size (bp)
    1362
  • Promoter CAG
  • Tags / Fusion Proteins
    • V5 (N terminal on insert)
    • NES (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer ggttcggcttctggcgtgtgacc
  • 3′ sequencing primer aaagcagcgtatccacatagcg
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV_CAG_V5-LOV-Turbo-NES was a gift from Alice Ting (Addgene plasmid # 199670 ; http://n2t.net/addgene:199670 ; RRID:Addgene_199670)

  • For your References section:

    Engineered allostery in light-regulated LOV-Turbo enables precise spatiotemporal control of proximity labeling in living cells. Lee SY, Cheah JS, Zhao B, Xu C, Roh H, Kim CK, Cho KF, Udeshi ND, Carr SA, Ting AY. Nat Methods. 2023 May 15. doi: 10.1038/s41592-023-01880-5. 10.1038/s41592-023-01880-5 PubMed 37188954
