pBMN HA-NDP52
(Plasmid
#199307)
-
PurposeFor expression of the mammalian NDP52 tagged with HA
-
Depositing Lab
-

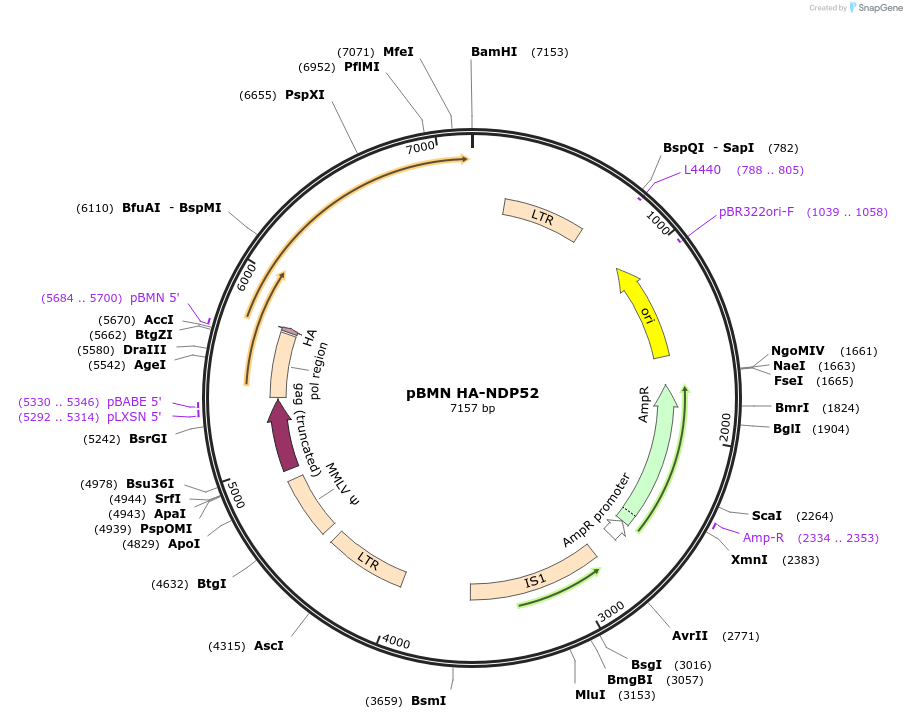

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 199307 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBMN
- Backbone size w/o insert (bp) 5028
- Total vector size (bp) 6368
-
Vector typeMammalian Expression, Retroviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNDP52
-
Alt nameCALCOCO2
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1551
-
GenBank IDNM_005831.5
-
Entrez GeneCALCOCO2 (a.k.a. NDP52)
-
Tag
/ Fusion Protein
- HA (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer pBMN 5'
- 3′ sequencing primer pBMN 3' (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBMN HA-NDP52 was a gift from Michael Lazarou (Addgene plasmid # 199307 ; http://n2t.net/addgene:199307 ; RRID:Addgene_199307) -
For your References section:
Unconventional initiation of PINK1/Parkin mitophagy by Optineurin. Nguyen TN, Sawa-Makarska J, Khuu G, Lam WK, Adriaenssens E, Fracchiolla D, Shoebridge S, Bernklau D, Padman BS, Skulsuppaisarn M, Lindblom RSJ, Martens S, Lazarou M. Mol Cell. 2023 May 18;83(10):1693-1709.e9. doi: 10.1016/j.molcel.2023.04.021. 10.1016/j.molcel.2023.04.021 PubMed 37207627
