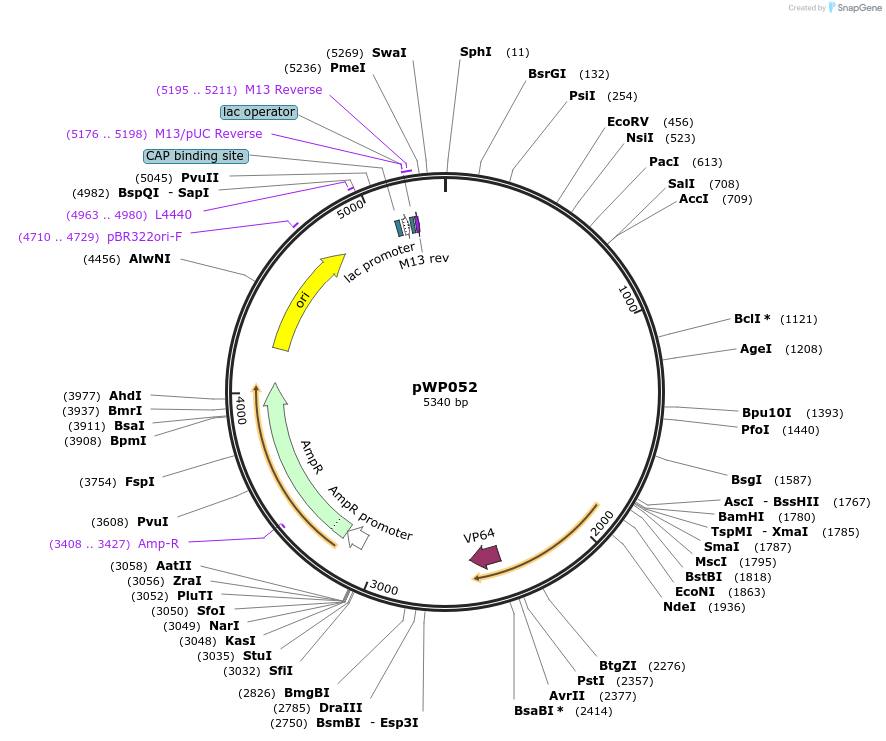

pWP052
(Plasmid #198774)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 198774 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHW393
  • Backbone size w/o insert (bp) 3611
  • Vector type
    Worm Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Pnlp-20-GAL4-SK(DBD)-VP64
  • Species
    C. elegans (nematode)
  • Insert Size (bp)
    1753

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer NA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pWP052 was a gift from Paul Sternberg (Addgene plasmid # 198774 ; http://n2t.net/addgene:198774 ; RRID:Addgene_198774)

  • For your References section:

    A cGAL-UAS bipartite expression toolkit for Caenorhabditis elegans sensory neurons. Nava S, Palma W, Wan X, Oh JY, Gharib S, Wang H, Revanna JS, Tan M, Zhang M, Liu J, Chen CH, Lee JS, Perry B, Sternberg PW. Proc Natl Acad Sci U S A. 2023 Dec 19;120(51):e2221680120. doi: 10.1073/pnas.2221680120. Epub 2023 Dec 14. 10.1073/pnas.2221680120 PubMed 38096407
