PAM2
(Plasmid #198741)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 198741 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

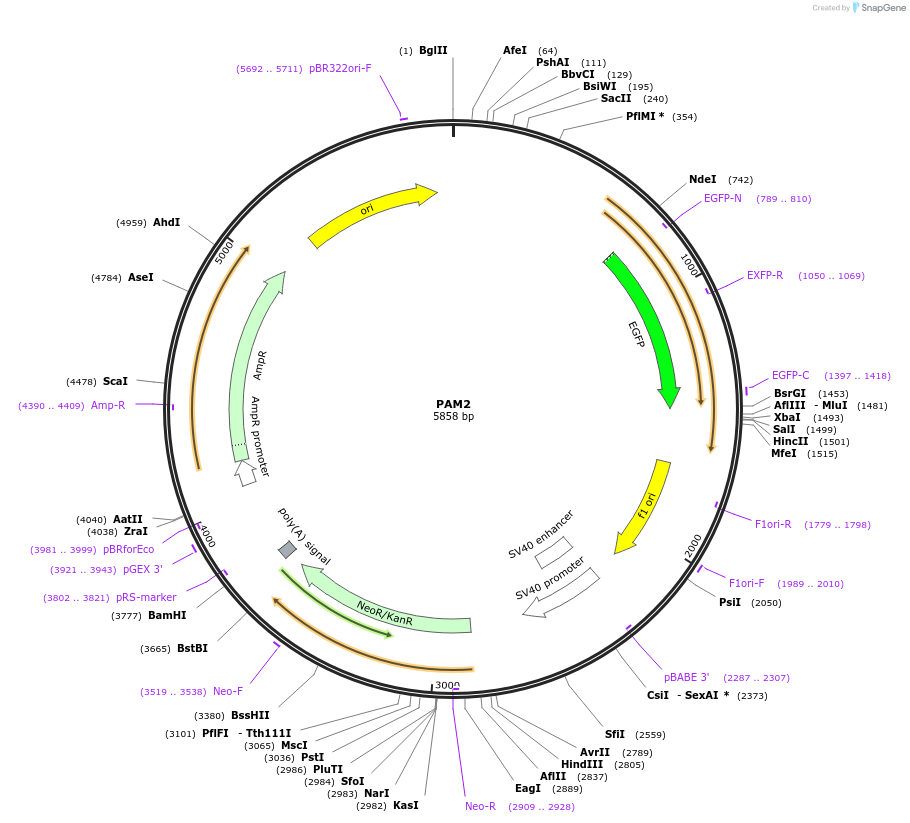

Backbone

  • Vector backbone
    PAM2
  • Backbone size w/o insert (bp) 5876
  • Total vector size (bp) 5876
  • Vector type
    Acanthamoeba expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    GFP
  • Insert Size (bp)
    720
  • Promoter pGAPDH

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site NdeI (not destroyed)
  • 5′ sequencing primer AGATCTATATGCAACCCTGTGACGAG
  • 3′ sequencing primer CATATGTCTTAGTGAGAGAGTGGTG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PAM2 was a gift from Chantal Abergel (Addgene plasmid # 198741 ; http://n2t.net/addgene:198741 ; RRID:Addgene_198741)

  • For your References section:

    Genetic manipulation of giant viruses and their host, Acanthamoeba castellanii. Philippe N, Shukla A, Abergel C, Bisio H. Nat Protoc. 2023 Nov 14. doi: 10.1038/s41596-023-00910-y. 10.1038/s41596-023-00910-y PubMed 37964008
