Cas9 Null
(Plasmid
#198727)
-
PurposeExpresses Cas9 without a mobility signal and the mRNA is not graft mobile. Induced by estradiol.
-
Depositing Lab
-

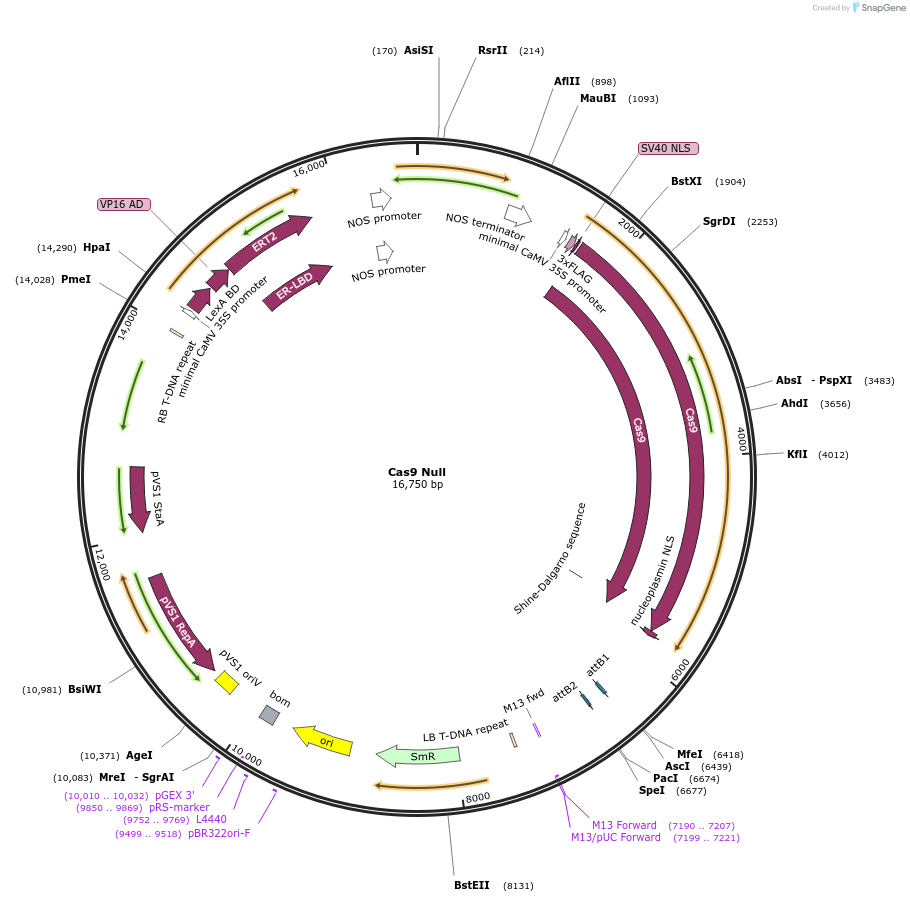

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 198727 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepMDC7
- Total vector size (bp) 16746
-
Vector typePlant Expression
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCas9
-
SpeciesStreptococcus pyogenes
-
Insert Size (bp)4272
- Promoter pG10-90
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XhoI (destroyed during cloning)
- 3′ cloning site XhoI (destroyed during cloning)
- 5′ sequencing primer GATCTTCGCAAGACCCTTCCTC
- 3′ sequencing primer GAAACTGATGCATTGAACTTGACGAA (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please refer to the GO CRISP Cloning Protocol linked above for additional information.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Cas9 Null was a gift from Friedrich Kragler (Addgene plasmid # 198727 ; http://n2t.net/addgene:198727 ; RRID:Addgene_198727) -
For your References section:
Heritable transgene-free genome editing in plants by grafting of wild-type shoots to transgenic donor rootstocks. Yang L, Machin F, Wang S, Saplaoura E, Kragler F. Nat Biotechnol. 2023 Jan 2. doi: 10.1038/s41587-022-01585-8. 10.1038/s41587-022-01585-8 PubMed 36593415
