SpCas9-NRCH-SsAPOBEC3B
(Plasmid #198550)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 198550 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

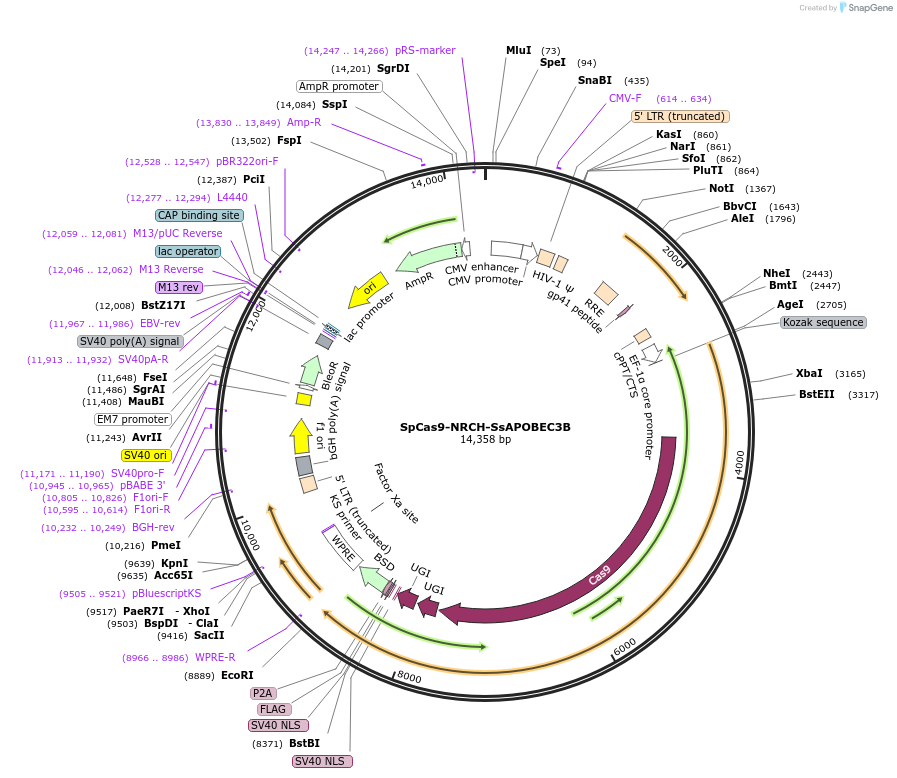

Backbone

  • Vector backbone
    pFUGW
  • Total vector size (bp) 14379
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    SpCas9-NRCH-SsAPOBEC3B
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    6171
  • Promoter EFS
  • Tags / Fusion Proteins
    • NLS (C terminal on insert)
    • FLAG (C terminal on insert)
    • BSD (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer 5' - ggtcttgaaaggagtgggaattgg - 3'
  • 3′ sequencing primer 5' - CAGGTCGCTTGTCGCCTCC - 3'
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    SpCas9-NRCH-SsAPOBEC3B was a gift from Hyongbum Kim (Addgene plasmid # 198550 ; http://n2t.net/addgene:198550 ; RRID:Addgene_198550)

  • For your References section:

    Deep learning models to predict the editing efficiencies and outcomes of diverse base editors. Kim N, Choi S, Kim S, Song M, Seo JH, Min S, Park J, Cho SR, Kim HH. Nat Biotechnol. 2024 Mar;42(3):484-497. doi: 10.1038/s41587-023-01792-x 10.1038/s41587-023-01792-x PubMed 37188916
