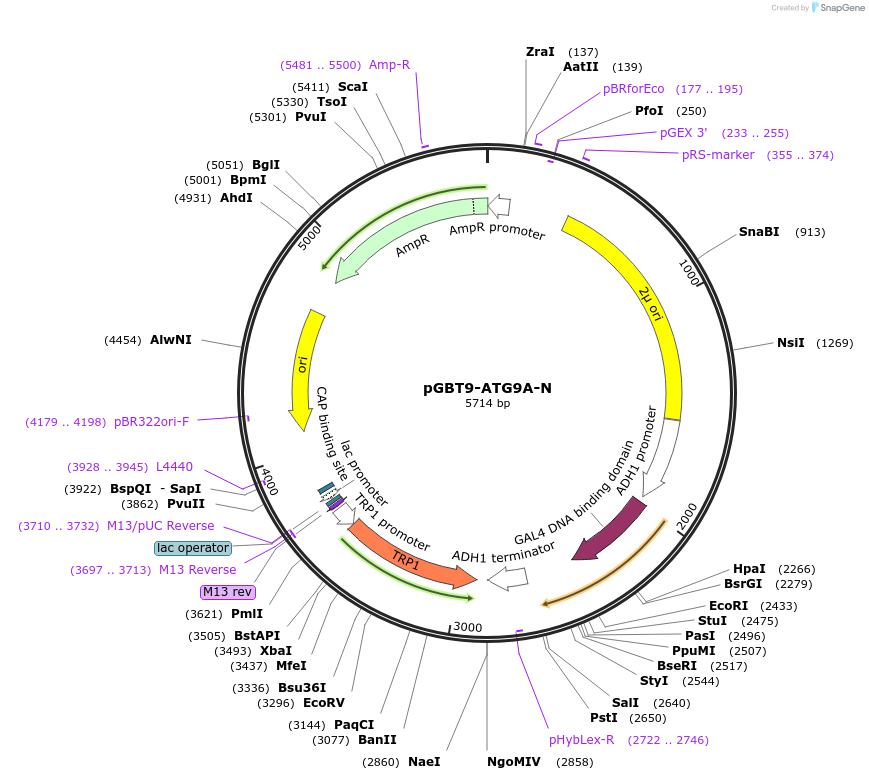

pGBT9-ATG9A-N
(Plasmid #198530)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 198530 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pGBT9
  • Backbone size w/o insert (bp) 5524
  • Total vector size (bp) 5715
  • Vector type
    Yeast Expression
  • Selectable markers
    TRP1

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    ATG9A N-terminal cytosolic tail (residues 1-66)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    201
  • Entrez Gene
    ATG9A (a.k.a. APG9L1, MGD3208, mATG9)
  • Promoter ADH1
  • Tag / Fusion Protein
    • GAL4-DNA binding domain fragment (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer GAL4 DNA binding domain forward
  • 3′ sequencing primer GAL4 DNA binding domain reverse
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGBT9-ATG9A-N was a gift from Juan Bonifacino (Addgene plasmid # 198530 ; http://n2t.net/addgene:198530 ; RRID:Addgene_198530)
  • For your References section:

    AP-4 mediates export of ATG9A from the trans-Golgi network to promote autophagosome formation. Mattera R, Park SY, De Pace R, Guardia CM, Bonifacino JS. Proc Natl Acad Sci U S A. 2017 Dec 12;114(50):E10697-E10706. doi: 10.1073/pnas.1717327114. Epub 2017 Nov 27. 10.1073/pnas.1717327114 PubMed 29180427
