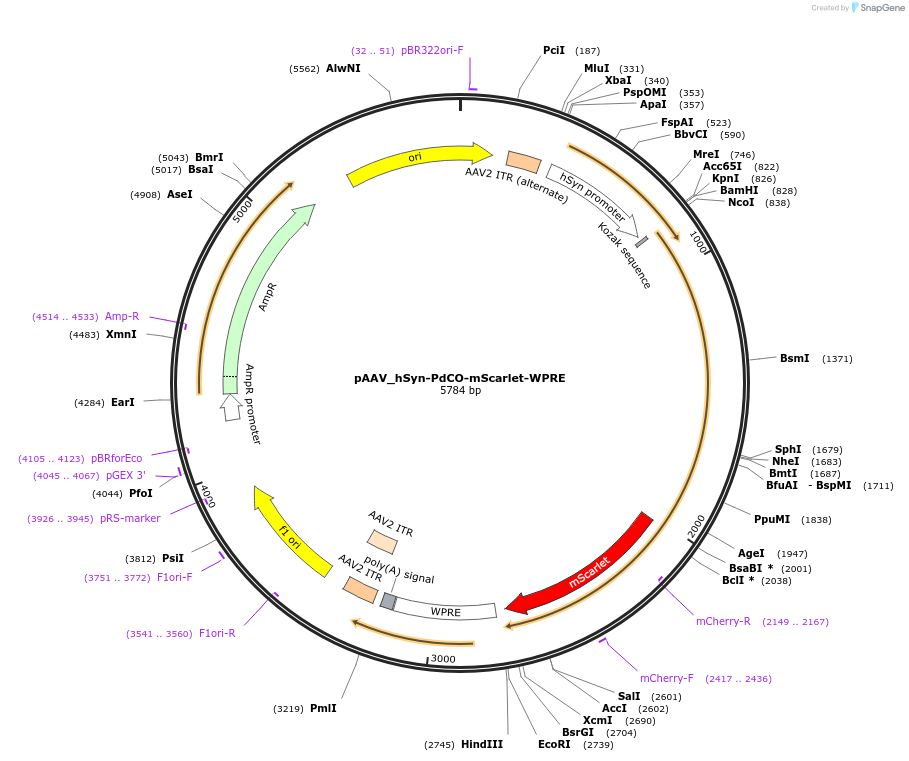

pAAV_hSyn-PdCO-mScarlet-WPRE
(Plasmid #198510)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 198510 Standard format: Plasmid sent in bacteria as agar stab 1 $85
AAV5 198510-AAV5 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. $405

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 3899
  • Total vector size (bp) 5795
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PdCO
  • Alt name
    Platynereis dumerilii Ciliary Opsin, optimized for mammalian neuron expression and enhanced axonal membrane trafficking
  • Species
    Synthetic; Platynereis dumerilii
  • Insert Size (bp)
    1896
  • GenBank ID
    AY692353.1
  • Promoter hSyn1
  • Tags / Fusion Proteins
    • mScarlet (C terminal on insert)
    • Rho1D4 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer hSyn_F (ttcagcaccgcggacagtg)
  • 3′ sequencing primer WPRE_R (ACCACGGAATTATCAGTGCCCA )
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Information for AAV5 (Catalog # 198510-AAV5) ( Back to top)

Purpose

Ready-to-use AAV5 particles produced from pAAV_hSyn-PdCO-mScarlet-WPRE (#198510). In addition to the viral particles, you will also receive purified pAAV_hSyn-PdCO-mScarlet-WPRE plasmid DNA.

Syn-driven expression of optimized PdCO in frame with mScarlet. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene mScarlet

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV_hSyn-PdCO-mScarlet-WPRE was a gift from Ofer Yizhar (Addgene plasmid # 198510 ; http://n2t.net/addgene:198510 ; RRID:Addgene_198510) For viral preps, please replace (Addgene plasmid # 198510) in the above sentence with: (Addgene viral prep # 198510-AAV5)
  • For your References section:

    A bistable inhibitory optoGPCR for multiplexed optogenetic control of neural circuits. Wietek J, Nozownik A, Pulin M, Saraf-Sinik I, Matosevich N, Gowrishankar R, Gat A, Malan D, Brown BJ, Dine J, Imambocus BN, Levy R, Sauter K, Litvin A, Regev N, Subramaniam S, Abrera K, Summarli D, Goren EM, Mizrachi G, Bitton E, Benjamin A, Copits BA, Sasse P, Rost BR, Schmitz D, Bruchas MR, Soba P, Oren-Suissa M, Nir Y, Wiegert JS, Yizhar O. Nat Methods. 2024 May 29. doi: 10.1038/s41592-024-02285-8. 10.1038/s41592-024-02285-8 PubMed 38811857
