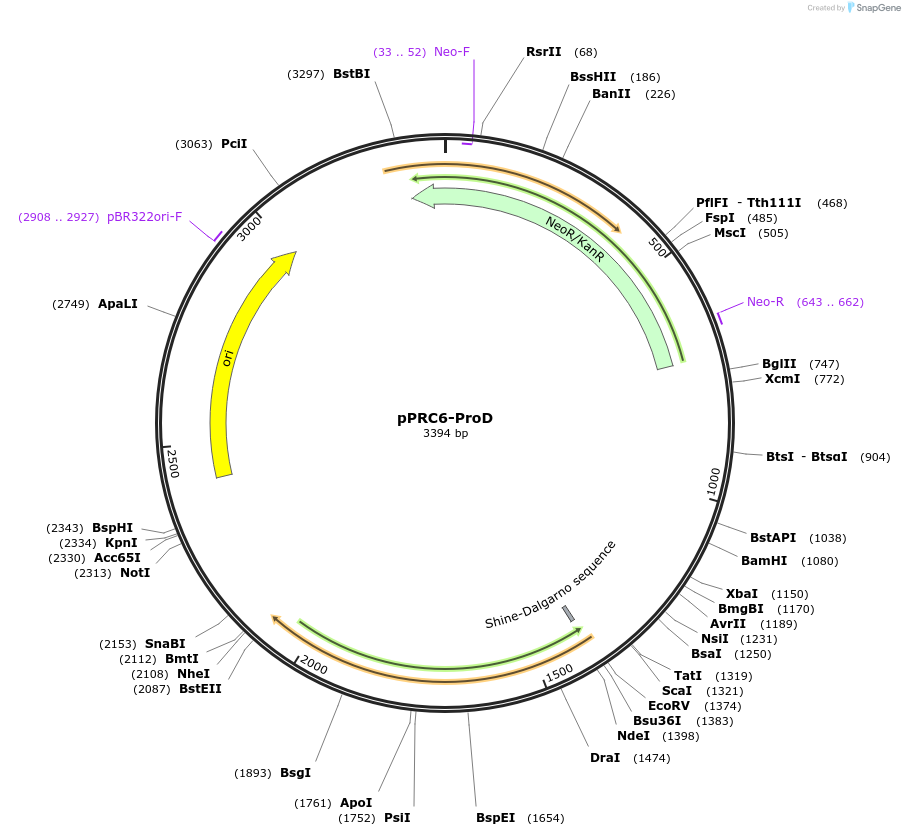

pPRC6-ProD
(Plasmid #198431)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 198431 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pPRC6
  • Backbone manufacturer
    Amber Bernauw
  • Backbone size w/o insert (bp) 3186
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    mKate2
  • Species
    Synthetic
  • Insert Size (bp)
    699
  • Promoter ProD

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer gtccagatagcccagtagctgacattc
  • 3′ sequencing primer GTGAAACTGACCGACCAATACC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPRC6-ProD was a gift from Eveline Peeters (Addgene plasmid # 198431 ; http://n2t.net/addgene:198431 ; RRID:Addgene_198431)

  • For your References section:

    Molecular mechanisms of regulation by a beta-alanine-responsive Lrp-type transcription factor from Acidianus hospitalis. Bernauw AJ, Crabbe V, Ryssegem F, Willaert R, Bervoets I, Peeters E. Microbiologyopen. 2023 Jun;12(3):e1356. doi: 10.1002/mbo3.1356. 10.1002/mbo3.1356 PubMed 37379425
