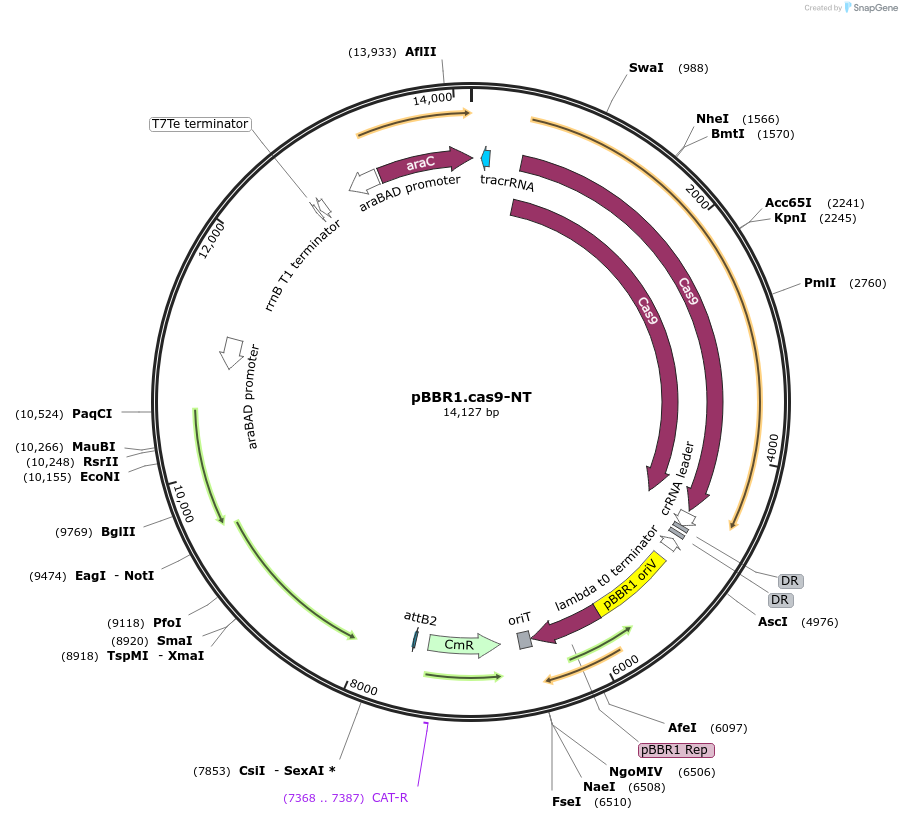

pBBR1.cas9-NT
(Plasmid
#197871)
-
PurposeConstitutive expression of Cas9 endonuclease, trancRNA and crRNA with a randomly generated spacer sequence (non-targeting)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 197871 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneBba_J72114
-
Backbone manufacturerChristopher Anderson
- Backbone size w/o insert (bp) 9334
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert 1
-
Gene/Insert nametrancCRNA
-
SpeciesStreptococcus pyogenes
-
Insert Size (bp)214
Gene/Insert 2
-
Gene/Insert nameCas9
-
Alt nameSpCas9
-
SpeciesStreptococcus pyogenes
-
Insert Size (bp)4107
Gene/Insert 3
-
Gene/Insert namecrRNA (non-chromosomal (E. coli/S. flexneri)-targeting spacer sequence)
-
SpeciesStreptococcus pyogenes
-
Insert Size (bp)255
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBBR1.cas9-NT was a gift from Baojun Wang (Addgene plasmid # 197871 ; http://n2t.net/addgene:197871 ; RRID:Addgene_197871) -
For your References section:
P1 Bacteriophage-Enabled Delivery of CRISPR-Cas9 Antimicrobial Activity Against Shigella flexneri. Huan YW, Torraca V, Brown R, Fa-Arun J, Miles SL, Oyarzun DA, Mostowy S, Wang B. ACS Synth Biol. 2023 Mar 17;12(3):709-721. doi: 10.1021/acssynbio.2c00465. Epub 2023 Feb 20. 10.1021/acssynbio.2c00465 PubMed 36802585
