Myc-Nix-S212A
(Plasmid #197514)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 197514 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

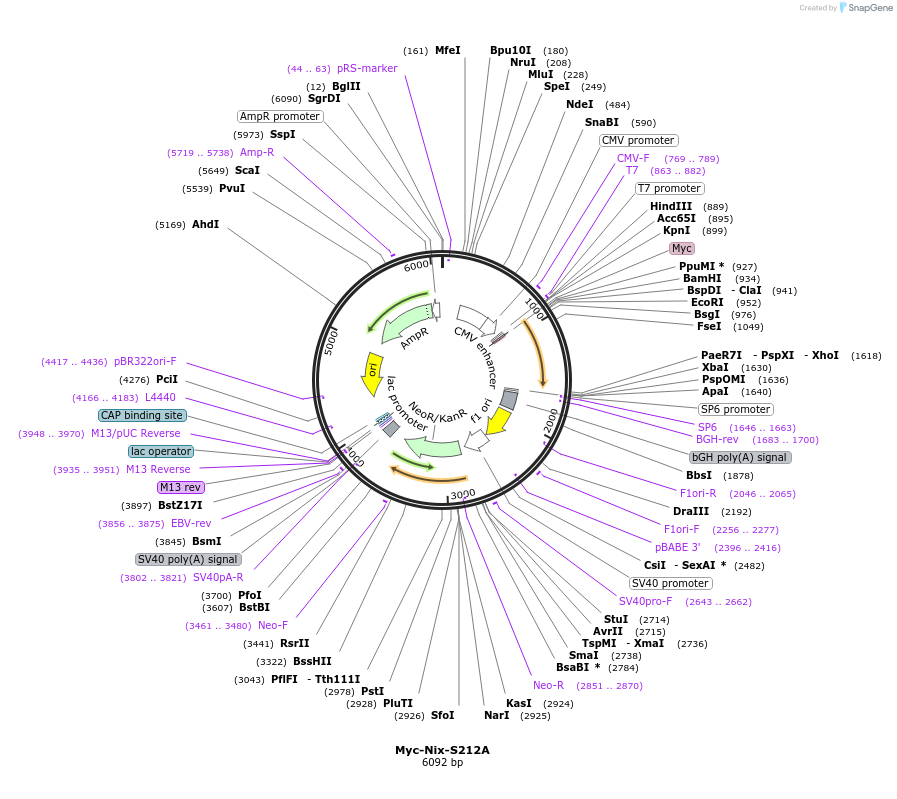

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone size w/o insert (bp) 5400
  • Total vector size (bp) 6060
  • Modifications to backbone
    Myc tag inserted in multiple cloning region
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    BCL2 interacting protein 3 like
  • Alt name
    BNIP3L (a.k.a. BNIP3a, NIX)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    660
  • Mutation
    Serine 212 changed to alanine
  • GenBank ID
    NM_004331.3
  • Entrez Gene
    BNIP3L (a.k.a. BNIP3a, NIP3L, NIX)
  • Promoter CMV
  • Tag / Fusion Protein
    • Myc (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer SP6
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Myc-Nix-S212A was a gift from Joseph Gordon (Addgene plasmid # 197514 ; http://n2t.net/addgene:197514 ; RRID:Addgene_197514)

  • For your References section:

    BNIP3L/Nix-induced mitochondrial fission, mitophagy, and impaired myocyte glucose uptake are abrogated by PRKA/PKA phosphorylation. da Silva Rosa SC, Martens MD, Field JT, Nguyen L, Kereliuk SM, Hai Y, Chapman D, Diehl-Jones W, Aliani M, West AR, Thliveris J, Ghavami S, Rampitsch C, Dolinsky VW, Gordon JW. Autophagy. 2021 Sep;17(9):2257-2272. doi: 10.1080/15548627.2020.1821548. Epub 2020 Oct 12. 10.1080/15548627.2020.1821548 PubMed 33044904
