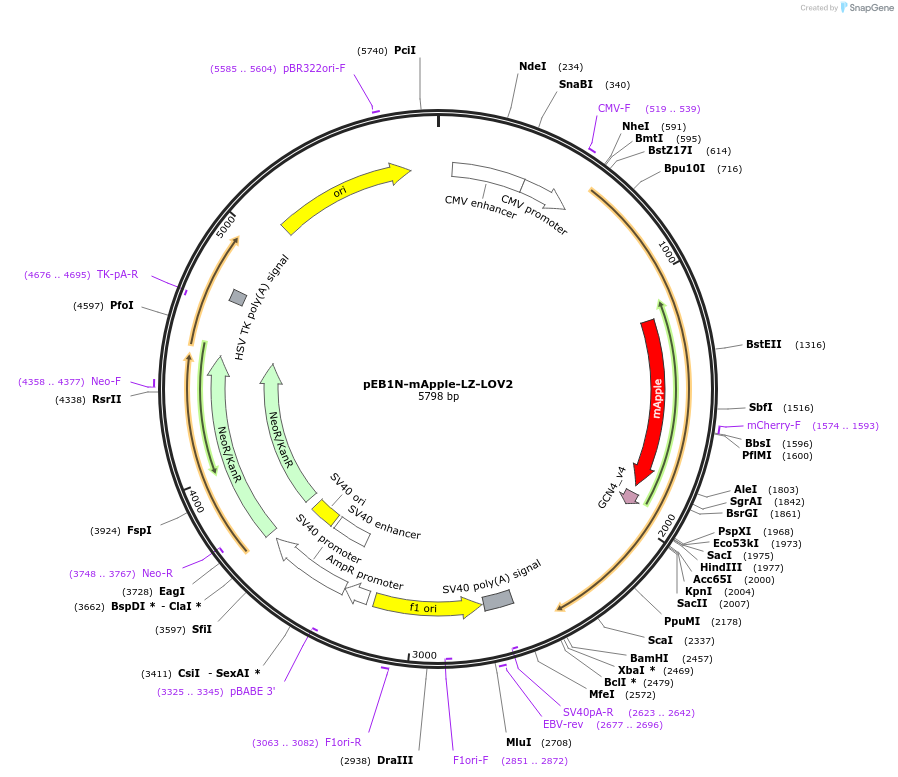

pEB1N-mApple-LZ-LOV2
(Plasmid #197418)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 197418 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEGFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3936
  • Total vector size (bp) 5798
  • Modifications to backbone
    removed EGFP
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MAPRE1
  • Alt name
    EB1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1857
  • Mutation
    EB1 aa 1-185; resistant to EB1 shRNA#3 (Addgene #37927)
  • GenBank ID
    NM_012325.2
  • Entrez Gene
    MAPRE1 (a.k.a. EB1)
  • Tags / Fusion Proteins
    • GCN4 leucine zipper (C terminal on insert)
    • mApple (C terminal on insert)
    • A. sativa phototropin 1 LOV2 domain (C terminal on insert)

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    EB1 from L. Cassimeris (Addgene #17234) LOV2 from Klaus Hahn (Addgene #22027)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

LOV2 domain starts with LAAA reported to stabilize Jα helix docking (Strickland et al. PMID: 22388287)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEB1N-mApple-LZ-LOV2 was a gift from Torsten Wittmann (Addgene plasmid # 197418 ; http://n2t.net/addgene:197418 ; RRID:Addgene_197418)

  • For your References section:

    Optogenetic EB1 inactivation shortens metaphase spindles by disrupting cortical force-producing interactions with astral microtubules. Dema A, van Haren J, Wittmann T. Curr Biol. 2022 Mar 14;32(5):1197-1205.e4. doi: 10.1016/j.cub.2022.01.017. Epub 2022 Jan 31. 10.1016/j.cub.2022.01.017 PubMed 35090591
