pLV-CS-119
(Plasmid
#197135)
-
PurposeCloneSelect A-to-G reporter encoding three target barcodes (3-input AND gate circuit)
-
Depositing Lab
-
Publication
-

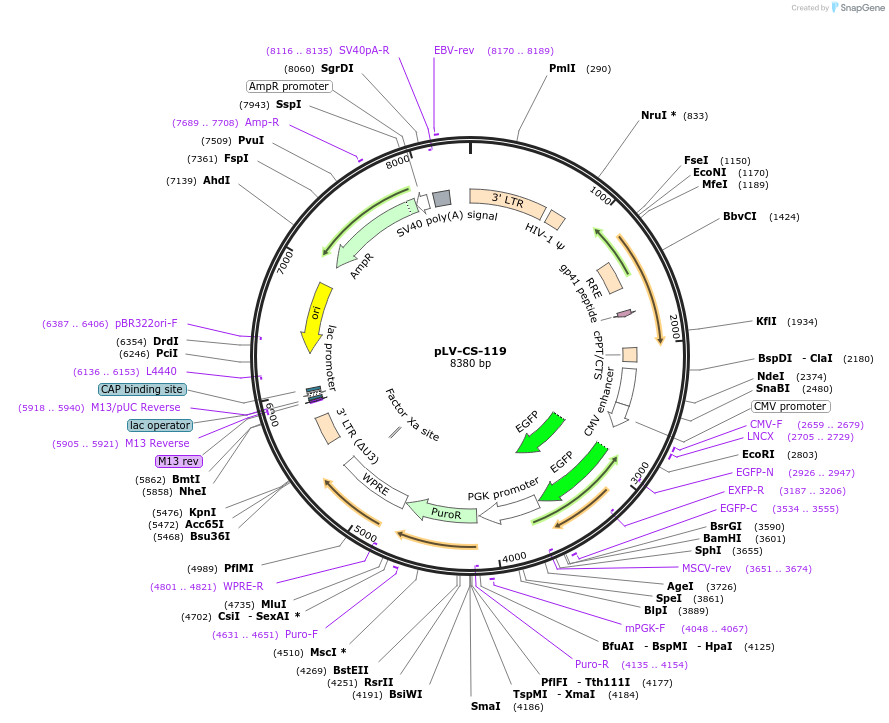

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 197135 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepLVSIN-CMV_Pur
-
Backbone manufacturerTakara
-
Vector typeMammalian Expression, Lentiviral
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameEGFP
-
SpeciesSynthetic
-
MutationEGFP(M1V)
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
https://benchling.com/s/seq-nMaUoafk2igghNemdK5I?m=slm-YPgFV8iTfIka1fjE4XwC
Please visit https://www.biorxiv.org/content/10.1101/2023.01.18.524633v1 for bioRxiv preprint. This plasmid is relatively unstable due to repetitive sequences and other genetic element cloned from retrovirus. Please be sure to use NEB stable cells and incubate at 30C.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLV-CS-119 was a gift from Nozomu Yachie (Addgene plasmid # 197135 ; http://n2t.net/addgene:197135 ; RRID:Addgene_197135) -
For your References section:
A multi-kingdom genetic barcoding system for precise target clone isolation. Ishiguro S, Ishida K, Sakata RC, Mori H, Takana M, King S, Bashth O, Ichiraku M, Masuyama N, Takimoto R, Kijima Y, Adel A, Toyoshima H, Seki M, Oh JH, Archambault AS, Nishida K, Kondo A, Kuhara S, Aburatani H, Klein Geltink RI, Takashima Y, Shakiba N, Yachie N. bioRxiv 2023.01.18.524633 10.1101/2023.01.18.524633
