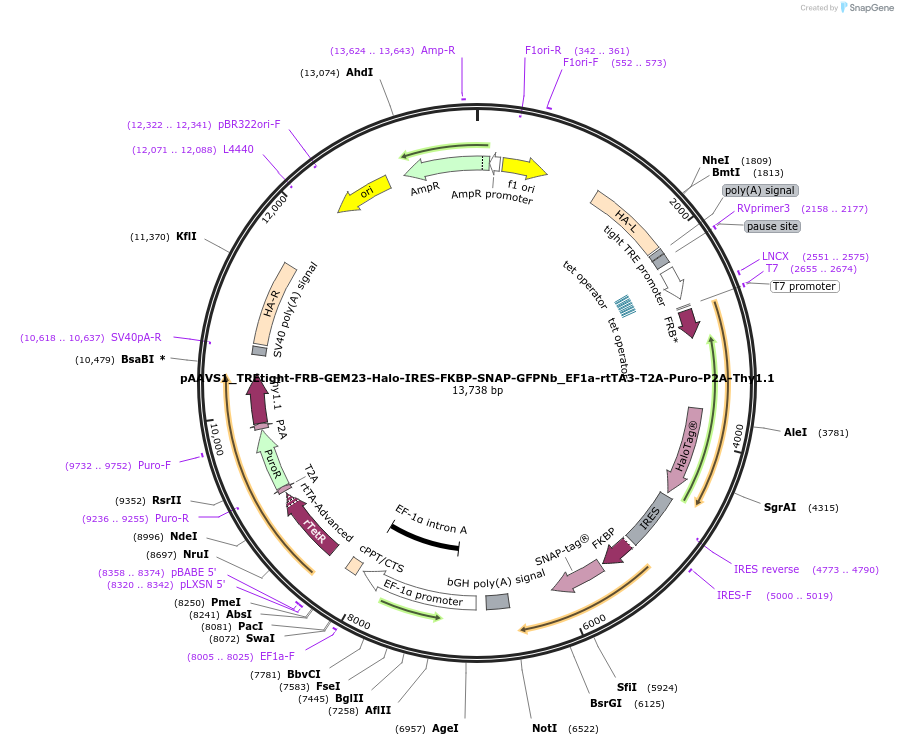

pAAVS1_TREtight-FRB-GEM23-Halo-IRES-FKBP-SNAP-GFPNb_EF1a-rtTA3-T2A-Puro-P2A-Thy1.1
(Plasmid #197065)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 197065 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pSH-EFIRES-P
  • Vector type
    Mammalian Expression, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert 1

  • Gene/Insert name
    I3-01
  • Alt name
    GEM23
  • Species
    Synthetic
  • Mutation
    Codon-optimised for human cell expression
  • GenBank ID
  • Tags / Fusion Proteins
    • FRB (N terminal on insert)
    • HaloTag (C terminal on insert)

Gene/Insert 2

  • Gene/Insert name
    Adaptor Protein
  • Alt name
    FKBP-SNAP-vhhGFP4

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    The protein sequence for nanocage I3-01 was derived from Addgene Plasmid #80046, first reported in Hsia, Y. et al. Design of a hyperstable 60-subunit protein icosahedron. Nature 535, 136–139 (2016). Addgene plasmids #129715 and #60510 were used in the creation of this plasmid. Anti-GFP nanobody vhhGFP4 was derived from Addgene #117713.
  • Article Citing this Plasmid

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAVS1_TREtight-FRB-GEM23-Halo-IRES-FKBP-SNAP-GFPNb_EF1a-rtTA3-T2A-Puro-P2A-Thy1.1 was a gift from Julia Mahamid (Addgene plasmid # 197065 ; http://n2t.net/addgene:197065 ; RRID:Addgene_197065)
  • For your References section:

    Genetically encoded multimeric tags for subcellular protein localization in cryo-EM. Fung HKH, Hayashi Y, Salo VT, Babenko A, Zagoriy I, Brunner A, Ellenberg J, Muller CW, Cuylen-Haering S, Mahamid J. Nat Methods. 2023 Dec;20(12):1900-1908. doi: 10.1038/s41592-023-02053-0. Epub 2023 Nov 6. 10.1038/s41592-023-02053-0 PubMed 37932397
