Addgene

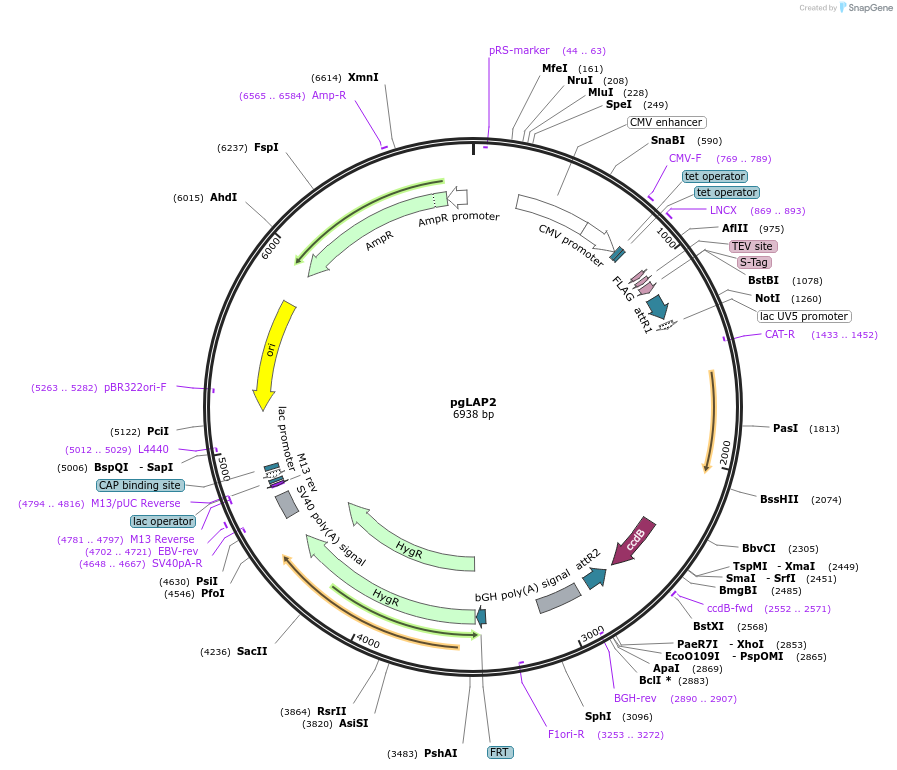

pgLAP2
(Plasmid #19703)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 19703 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCDNA5/FRT/TO
  • Backbone manufacturer
    Invitrogen
  • Backbone size (bp) 6938
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol and Ampicillin, 25 & 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    ccdB Survival
  • Growth instructions
    ccdB cells
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    None
  • Tags / Fusion Proteins
    • Flag (N terminal on backbone)
    • TEV (N terminal on backbone)
    • S peptide (N terminal on backbone)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ cloning site Gateway (not destroyed)
  • 3′ cloning site Gateway (not destroyed)
  • 5′ sequencing primer CGA ACG CCA GCA CAT GGA CAG CG
  • 3′ sequencing primer TGG CTG GCA ACT AGA AGG CAC AGT CGA GGC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pgLAP2 was a gift from Peter Jackson (Addgene plasmid # 19703 ; http://n2t.net/addgene:19703 ; RRID:Addgene_19703)
