TLD_062
(Plasmid
#19698)
-
Purpose(Empty Backbone)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 19698 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

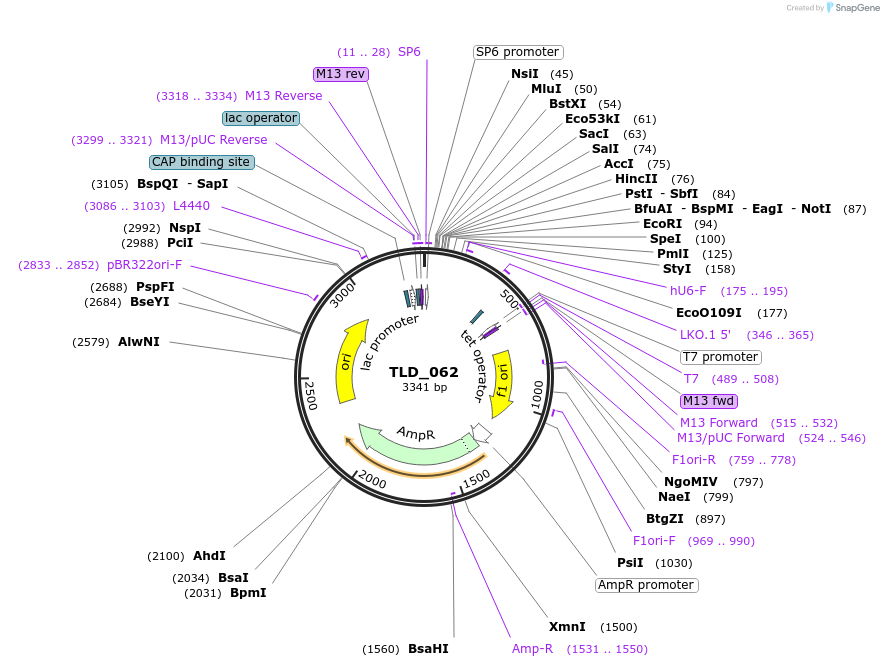

Backbone
-
Vector backboneLTRi
- Backbone size (bp) 3341
-
Vector typeMammalian Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer SP6
- 3′ sequencing primer M13_puc_for (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
TLD_062 was a gift from James Collins (Addgene plasmid # 19698 ; http://n2t.net/addgene:19698 ; RRID:Addgene_19698) -
For your References section:
A tunable genetic switch based on RNAi and repressor proteins for regulating gene expression in mammalian cells. Deans TL, Cantor CR, Collins JJ. Cell. 2007 Jul 27. 130(2):363-72. 10.1016/j.cell.2007.05.045 PubMed 17662949
