Cas9 TLS1
(Plasmid #196977)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 196977 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

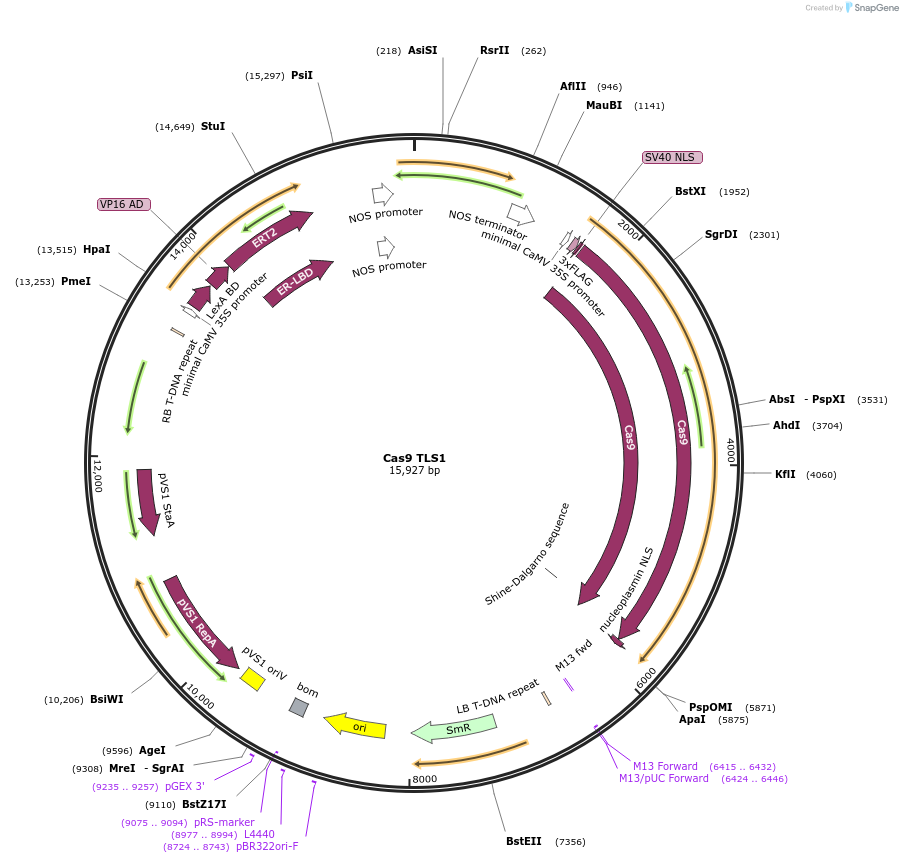

Backbone

  • Vector backbone
    pMDC7
  • Total vector size (bp) 15927
  • Vector type
    Plant Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Cas9 with TLS1 tag
  • Species
    Streptococcus pyogenes
  • Insert Size (bp)
    4323
  • Promoter pG10-90

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (destroyed during cloning)
  • 3′ cloning site XhoI (destroyed during cloning)
  • 5′ sequencing primer GATCTTCGCAAGACCCTTCCTC
  • 3′ sequencing primer GAAACTGATGCATTGAACTTGACGAA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please refer to the GO CRISP Cloning Protocol linked above for additional information.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Cas9 TLS1 was a gift from Friedrich Kragler (Addgene plasmid # 196977 ; http://n2t.net/addgene:196977 ; RRID:Addgene_196977)

  • For your References section:

    Heritable transgene-free genome editing in plants by grafting of wild-type shoots to transgenic donor rootstocks. Yang L, Machin F, Wang S, Saplaoura E, Kragler F. Nat Biotechnol. 2023 Jan 2. doi: 10.1038/s41587-022-01585-8. 10.1038/s41587-022-01585-8 PubMed 36593415
