pET28b_TypeIC_acrIC4_invivo
(Plasmid
#196403)
-
Purposeexpresses acrIC4 protein targeting CRISPR Cascade Type IC for in vivo assay
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 196403 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

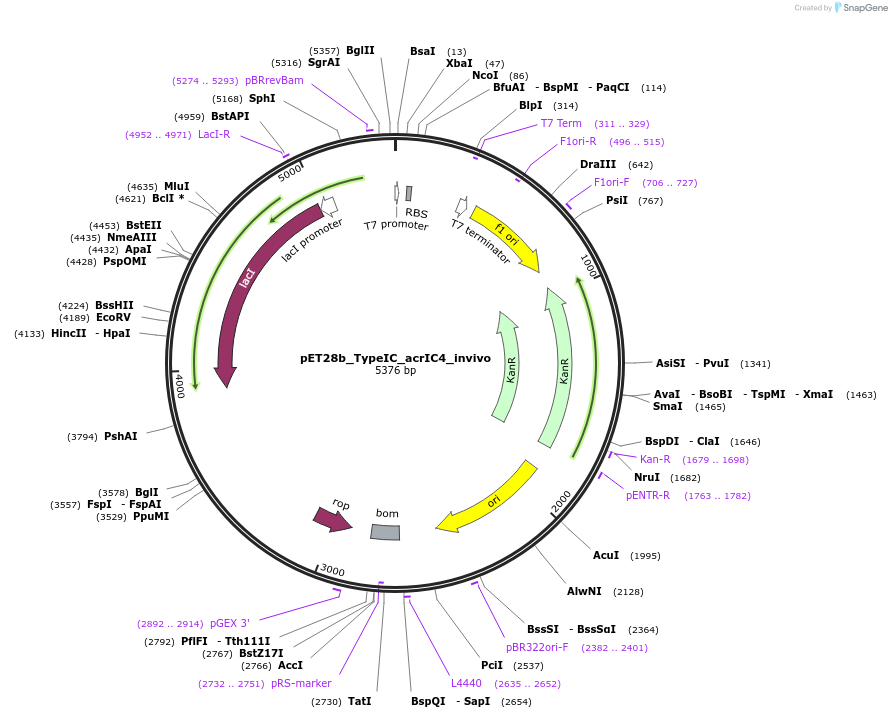

Backbone
-
Vector backbonepET28b
- Total vector size (bp) 5355
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameanti-CRISPR IC4 protein
-
SpeciesP. aeruginosa
-
Insert Size (bp)174
-
GenBank IDWP_1535753561.1
- Promoter T7
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer taatacgactcactatagg (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET28b_TypeIC_acrIC4_invivo was a gift from David Taylor (Addgene plasmid # 196403 ; http://n2t.net/addgene:196403 ; RRID:Addgene_196403) -
For your References section:
Structural snapshots of R-loop formation by a type I-C CRISPR Cascade. O'Brien RE, Bravo JPK, Ramos D, Hibshman GN, Wright JT, Taylor DW. Mol Cell. 2023 Mar 2;83(5):746-758.e5. doi: 10.1016/j.molcel.2023.01.024. Epub 2023 Feb 16. 10.1016/j.molcel.2023.01.024 PubMed 36805026
