TRUPATH Triple Ga12
(Plasmid #196061)

• Purpose: Encodes a G alpha subunit (GNA12) with RLuc8, a G gamma subunit (GNG9) with GFP2 and a G beta subunit (GNB3) as optimal components of a BRET2 biosensor for studying heterotrimeric G proteins
• Depositing Lab: Justin English
• Publication: Olsen et al Nat Chem Biol. 2020 May 4. pii: 10.1038/s41589-020-0535-8. doi: 10.1038/s41589-020-0535-8.

Backbone

• Vector backbone: pcDNA3.1(+)
• Backbone manufacturer: Genscript
• Backbone size w/o insert (bp): 5075
• Total vector size (bp): 9881
• Vector type: Mammalian Expression, Luciferase

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert 1

• Gene/Insert name: GAlpha12-RLuc8
• Alt name: GNA12
• Species: H. sapiens (human)
• Insert Size (bp): 2112
• Mutation: RLuc8 and flanking SGGGGS linkers have been inserted at amino acid position 134 of the alpha subunit
• Entrez Gene: GNA12 (a.k.a. HG1M1, NNX3, RMP, gep)
• Promoter: CMV

Cloning Information for Gene/Insert 1

• Cloning method: Unknown
• 5′ sequencing primer: gccacgttgtgagttggatag
• 3′ sequencing primer: TAGAAGGCACAGTCGAGG

Gene/Insert 2

• Gene/Insert name: GGamma9-GFP2
• Alt name: GNG9
• Species: H. sapiens (human)
• Insert Size (bp): 939
• Promoter: CMV
• Tag / Fusion Protein:
  • GFP2 and GSAG linker (N terminal on insert)

Cloning Information for Gene/Insert 2

• Cloning method: Unknown
• 5′ sequencing primer: gagggcagaggaagtcttc
• 3′ sequencing primer: GATTTAGGTGACACTATAG

Gene/Insert 3

• Gene/Insert name: GBeta3
• Alt name: GNB3
• Species: H. sapiens (human)
• Insert Size (bp): 1020
• Entrez Gene: GNB3 (a.k.a. CSNB1H, HG2D)
• Promoter: CMV

Cloning Information for Gene/Insert 3

• Cloning method: Unknown
• 5′ sequencing primer: CGCAAATGGGCGGTAGGCGTG
• 3′ sequencing primer: ccggtagggccgggattc

Resource Information

• Supplemental Documents:

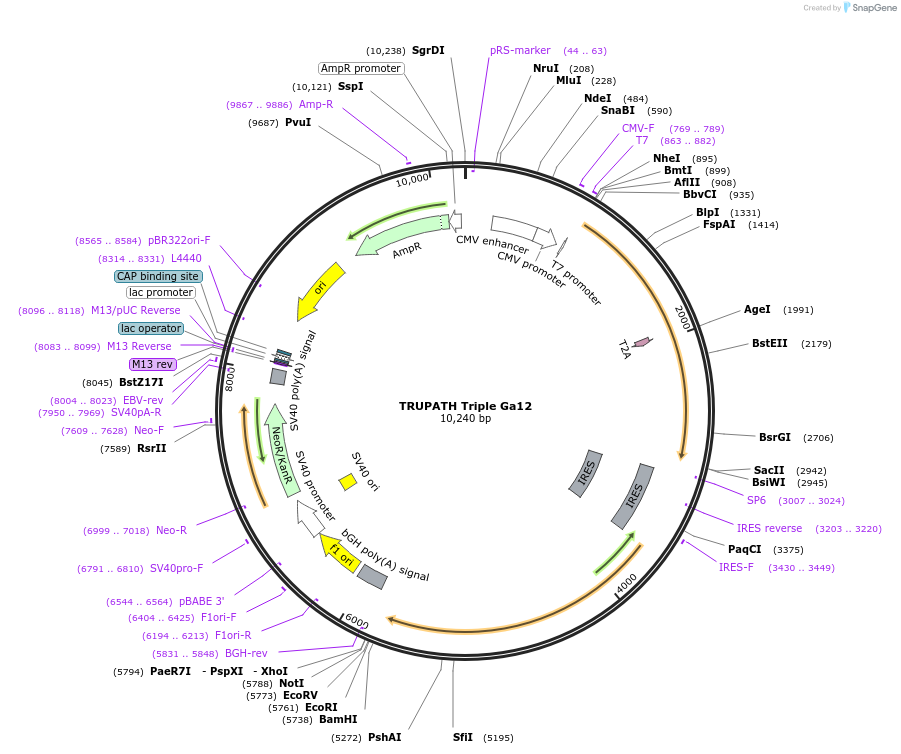

  • 196061_trupath-triple-ga12 (1).gb
• A portion of this plasmid was derived from a plasmid made by: AddgeneTRUPATH Kit #1000000163

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Renilla Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry
