pX459-sgRNA3-RPB1-N-term
(Plasmid #195112)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 195112 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

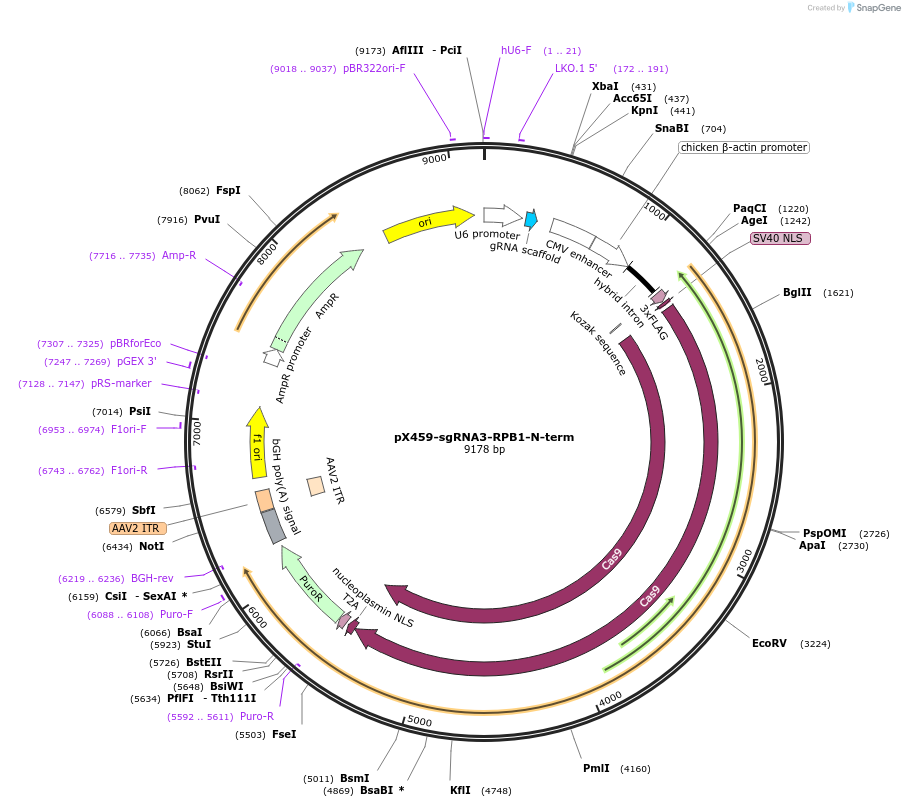

Backbone

  • Vector backbone
    PX459 V2.0 Addgene plasmid #62988
  • Total vector size (bp) 9178
  • Vector type
    Mammalian Expression, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    sgRNA against first exon of RPB1 (N-terminal)
  • gRNA/shRNA sequence
    CCCCCGTGCATGGCGGAGGC
  • Species
    H. sapiens (human)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer GACTATCATATGCTTACCGT
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pX459-sgRNA3-RPB1-N-term was a gift from Job Dekker (Addgene plasmid # 195112 ; http://n2t.net/addgene:195112 ; RRID:Addgene_195112)

  • For your References section:

    A cohesin traffic pattern genetically linked to gene regulation. Valton AL, Venev SV, Mair B, Khokhar ES, Tong AHY, Usaj M, Chan K, Pai AA, Moffat J, Dekker J. Nat Struct Mol Biol. 2022 Dec 8. doi: 10.1038/s41594-022-00890-9. 10.1038/s41594-022-00890-9 PubMed 36482254
