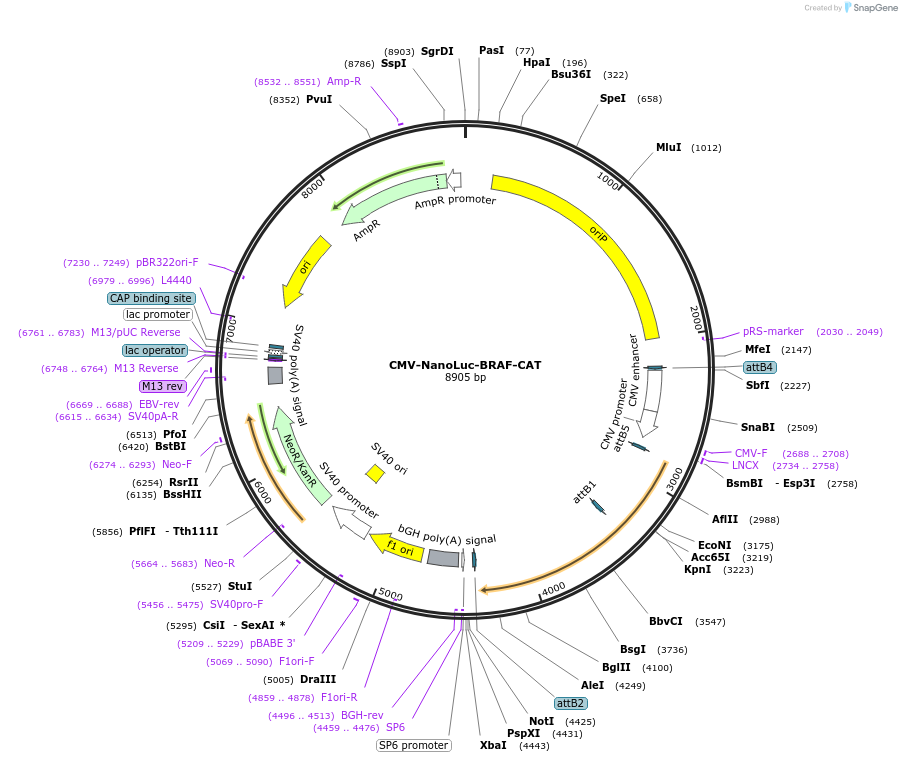

CMV-NanoLuc-BRAF-CAT
(Plasmid #194772)

• Purpose: Mammalian expression construct encoding the BRAF catalytic (CAT) domain (AA 435-766) with an N-terminal NanoLuc tag.
• Depositing Lab: Deborah Morrison
• Publication: Spencer-Smith et al Mol Cell. 2022 Nov 17;82(22):4262-4276.e5. doi: 10.1016/j.molcel.2022.10.016. Epub 2022 Nov 7.

Backbone

• Vector backbone: pDest-303
• Total vector size (bp): 9633
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: BRAF catalytic (CAT) domain (AA 435-766)
• Species: H. sapiens (human)
• Insert Size (bp): 1000
• Entrez Gene: BRAF (a.k.a. B-RAF1, B-raf, BRAF-1, BRAF1, NS7, RAFB1)
• Promoter: CMV51
• Tag / Fusion Protein:
  • NanoLuc (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BsrGI (not destroyed)
• 3′ cloning site: BsrGI (not destroyed)
• 5′ sequencing primer: CMV-F

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • NanoLuc Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry
