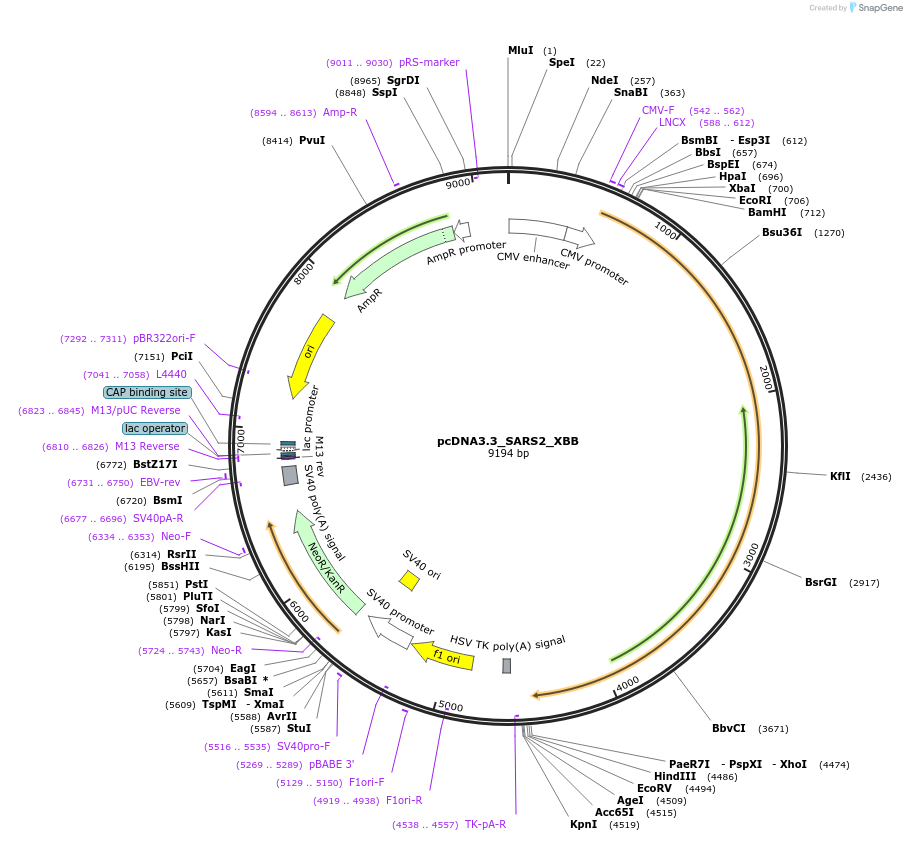

pcDNA3.3_SARS2_XBB
(Plasmid #194494)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 194494 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.3
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 8800
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Spike (XBB)
  • Species
    SARS-CoV-2
  • Insert Size (bp)
    3800
  • Mutation
    V83A, Y144-,H146Q, Q183E, V213E, G339H, L368I, R346T, V445P, G446S, N460K, F486S, F490S, R493Q and c-terminal 18aa del on the basis of BA.2
  • Entrez Gene
    S (a.k.a. GU280_gp02, spike glycoprotein)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer TK_pA-R
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    fragment synthesized from Burton lab

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.3_SARS2_XBB was a gift from David Nemazee (Addgene plasmid # 194494 ; http://n2t.net/addgene:194494 ; RRID:Addgene_194494)

  • For your References section:

    Broadly neutralizing anti-S2 antibodies protect against all three human betacoronaviruses that cause deadly disease. Zhou P, Song G, Liu H, Yuan M, He WT, Beutler N, Zhu X, Tse LV, Martinez DR, Schafer A, Anzanello F, Yong P, Peng L, Dueker K, Musharrafieh R, Callaghan S, Capozzola T, Limbo O, Parren M, Garcia E, Rawlings SA, Smith DM, Nemazee D, Jardine JG, Safonova Y, Briney B, Rogers TF, Wilson IA, Baric RS, Gralinski LE, Burton DR, Andrabi R. Immunity. 2023 Mar 14;56(3):669-686.e7. doi: 10.1016/j.immuni.2023.02.005. Epub 2023 Feb 16. 10.1016/j.immuni.2023.02.005 PubMed 36889306
