FCM101
(Plasmid
#194298)
-
PurposeE. coli expression vector for monobody adaptor, FCM101, that bind to the Fc region of mouse IgG1 subclass. It contains a single Cys residue at the C-terminus for chemical conjugation, N-terminal His6
-
Depositing Lab
-
Sequence Information
-
Sequences (1) — Accept Affinity Reagent Sequence Policy
-
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 194298 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

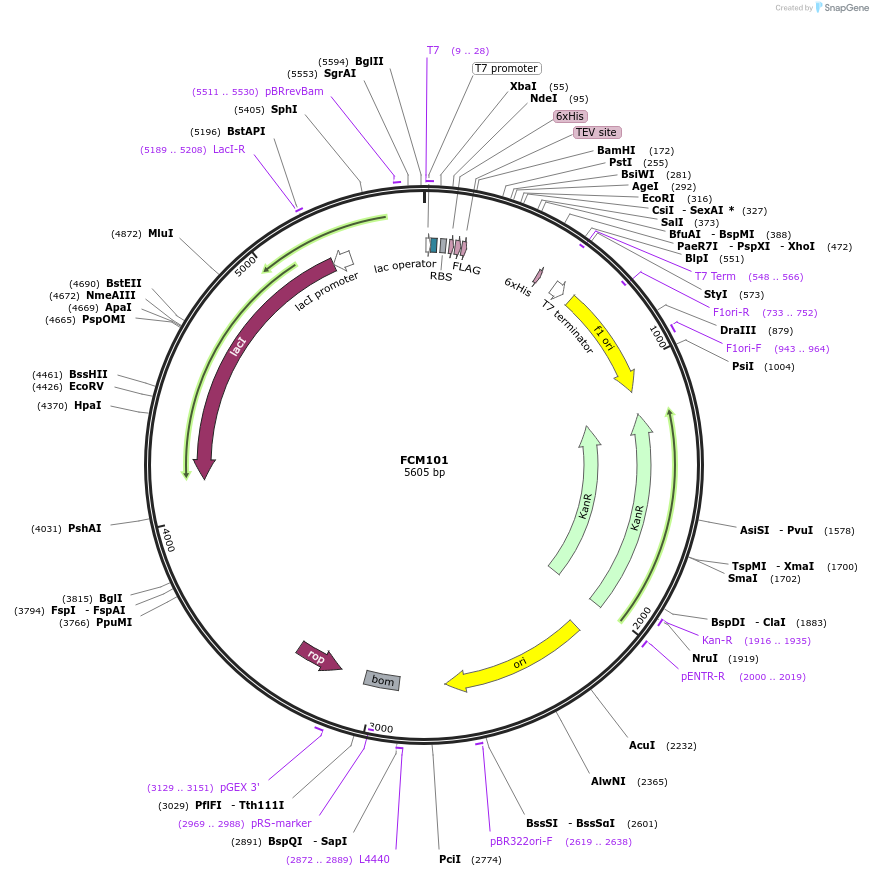

Backbone
-
Vector backbonepET24a
-
Backbone manufacturerNovagen
- Backbone size w/o insert (bp) 5234
- Total vector size (bp) 5609
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameFCM101
-
SpeciesSynthetic
-
Insert Size (bp)375
- Promoter T7
-
Tag
/ Fusion Protein
- His tag, FLAG tag (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (unknown if destroyed)
- 3′ cloning site XhoI (unknown if destroyed)
- 5′ sequencing primer T7promoter
- 3′ sequencing primer T7terminator (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
FCM101 was a gift from Shohei Koide (Addgene plasmid # 194298 ; http://n2t.net/addgene:194298 ; RRID:Addgene_194298) -
For your References section:
Monobody adapter for functional antibody display on nanoparticles for adaptable targeted delivery applications. Albert C, Bracaglia L, Koide A, DiRito J, Lysyy T, Harkins L, Edwards C, Richfield O, Grundler J, Zhou K, Denbaum E, Ketavarapu G, Hattori T, Perincheri S, Langford J, Feizi A, Haakinson D, Hosgood SA, Nicholson ML, Pober JS, Saltzman WM, Koide S, Tietjen GT. Nat Commun. 2022 Oct 11;13(1):5998. doi: 10.1038/s41467-022-33490-8. 10.1038/s41467-022-33490-8 PubMed 36220817
