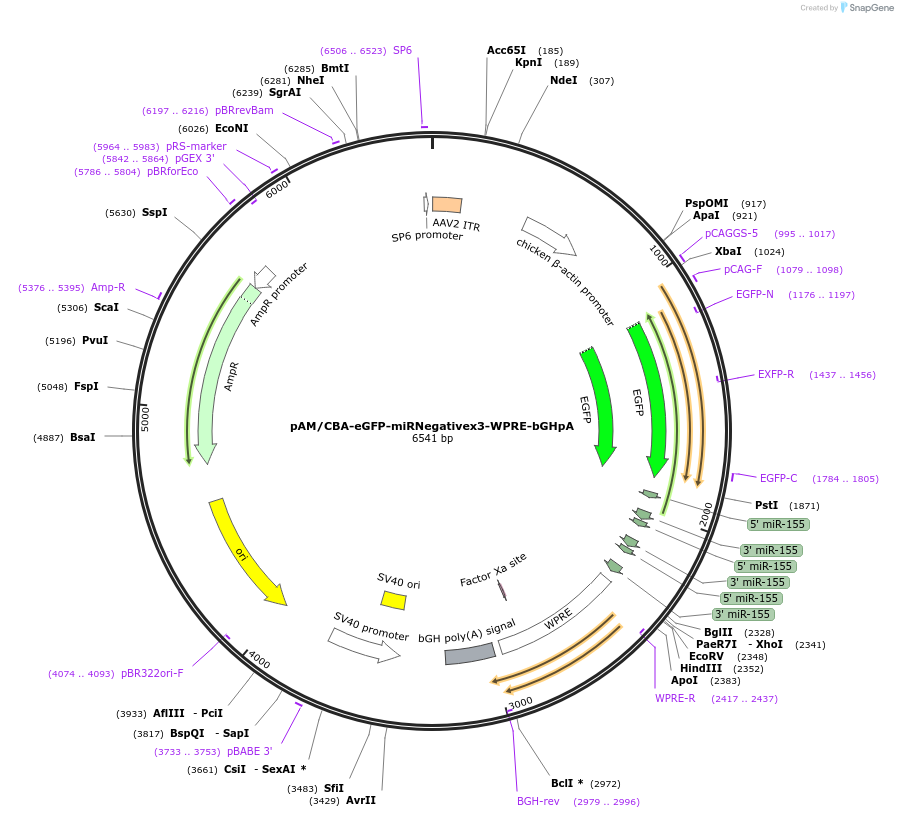

pAM/CBA-eGFP-miRNegativex3-WPRE-bGHpA
(Plasmid #194249)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 194249 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAM
  • Backbone size w/o insert (bp) 6132
  • Vector type
    AAV, RNAi

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    miRNegative
  • gRNA/shRNA sequence
    CTGGAGGCTTGCTGAAGGCTGTATGCTGAAATGTACTGCGCGTGGAGACGTTTTGGCCACTGACTGACGTCTCCACGCAGTACATTTCAGGACACAAGGCCTGTTACTAGCACTCACATGGAACAAATGGCCCAGATCCTGGAGGCTTGCTGAAGGCTGTATGCTGAAATGTACTGCGCGTGGAGACGTTTTGGCCACTGACTGACGTCTCCACGCAGTACATTTCAGGACACAAGGCCTGTTACTAGCACTCACATGGAACAAATGGCCCAGATCCTGGAGGCTTGCTGAAGGCTGTATGCTGAAATGTACTGCGCGTGGAGACGTTTTGGCCACTGACTGACGTCTCCACGCAGTACATTTCAGGACACAAGGCCTGTTACTAGCACTCACATGGAACAAATGGCC
  • Species
    Synthetic
  • Insert Size (bp)
    420
  • Promoter CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PstI (unknown if destroyed)
  • 3′ cloning site XhoI (unknown if destroyed)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note: The plasmid contains an 11bp deletion in one of the ITRs. This deletion does not affect plasmid performance as the virus undergoes self-repair of this region during AAV packaging.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAM/CBA-eGFP-miRNegativex3-WPRE-bGHpA was a gift from Michael J Fox Foundation MJFF (Addgene plasmid # 194249 ; http://n2t.net/addgene:194249 ; RRID:Addgene_194249)
