pOxyR_gfp
(Plasmid #194154)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 194154 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

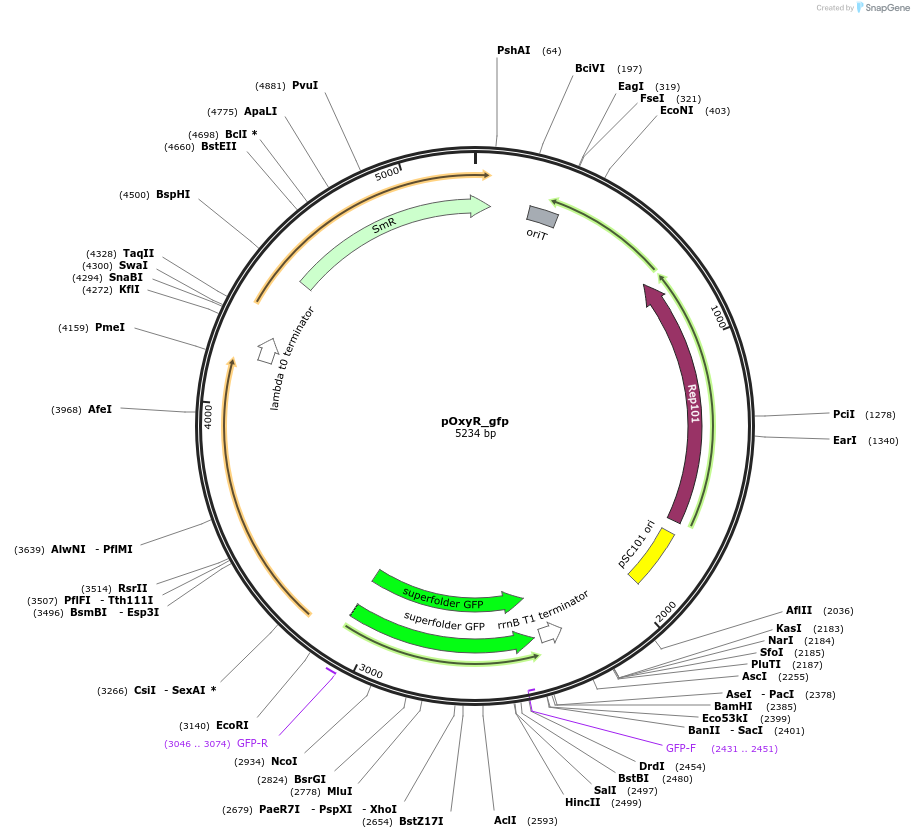

Backbone

  • Vector backbone
    pSEVA-based
  • Backbone manufacturer
    https://seva-plasmids.com/
  • Backbone size w/o insert (bp) 2390
  • Total vector size (bp) 4158
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Streptomycin, 50 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    Depositing Lab uses E. coli BL21 (DE3) Gold lacIq1 at 30 C for protein production.
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    transcriptional regulator, OxyR, cognate promoter PoxyS, fluorescent protein sfGFP
  • Species
    E. coli
  • Insert Size (bp)
    1768
  • Promoter PoxyR, PoxyS

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CCGAGCGTTCTGAACAAATC
  • 3′ sequencing primer CCCAGTCTTTCGACTGAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pOxyR_gfp was a gift from Sven Panke (Addgene plasmid # 194154 ; http://n2t.net/addgene:194154 ; RRID:Addgene_194154)

  • For your References section:

    Whole-cell screening of oxidative enzymes using genetically encoded sensors. Kardashliev T, Weingartner A, Romero E, Schwaneberg U, Fraaije M, Panke S, Held M. Chem Sci. 2021 Oct 29;12(44):14766-14772. doi: 10.1039/d1sc02578c. eCollection 2021 Nov 17. 10.1039/d1sc02578c PubMed 34820092
