1BR9-AtWUS
(Plasmid #193865)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 193865 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

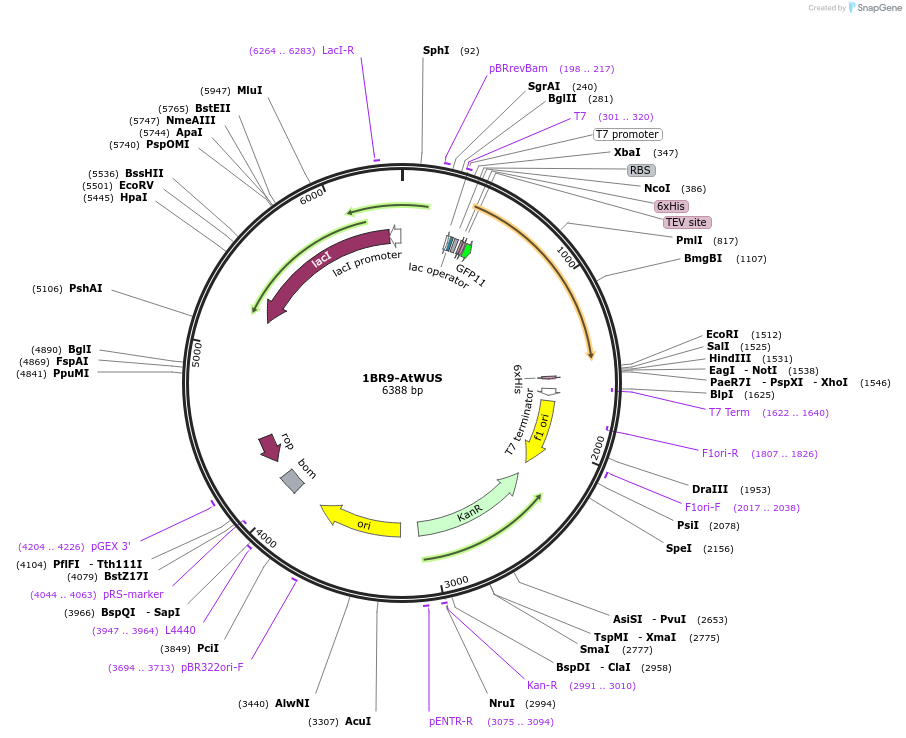

Backbone

  • Vector backbone
    1BR9
  • Backbone size w/o insert (bp) 5513
  • Total vector size (bp) 6392
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    AtWUS E. Coli Codon Optimized
  • Species
    A. thaliana (mustard weed)
  • Insert Size (bp)
    873
  • GenBank ID
    NM_127349
  • Promoter T7 Promoter
  • Tags / Fusion Proteins
    • 6xHis (N terminal on backbone)
    • GFP11 (N terminal on backbone)
    • R9 (C terminal on backbone)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer GCTAGTTATTGCTCAGCGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    1BR9-AtWUS was a gift from Markita Landry (Addgene plasmid # 193865 ; http://n2t.net/addgene:193865 ; RRID:Addgene_193865)

  • For your References section:

    Delivered complementation in planta (DCIP) enables measurement of peptide-mediated protein delivery efficiency in plants. Wang JW, Squire HJ, Goh NS, Ni HM, Lien E, Wong C, Gonzalez-Grandio E, Landry MP. Commun Biol. 2023 Aug 12;6(1):840. doi: 10.1038/s42003-023-05191-5. 10.1038/s42003-023-05191-5 PubMed 37573467
