pDL026_HA-rb_IgG_LC_15F11
(Plasmid
#193623)
-
PurposeHA-tag light chain hypervariable regions grafted into 15F11 scaffold (Zhao et al., 2019) + rabbit light chain constant regions + exogenous N-term signal peptide. For co-expression with pDL025.
-
Depositing Lab
-

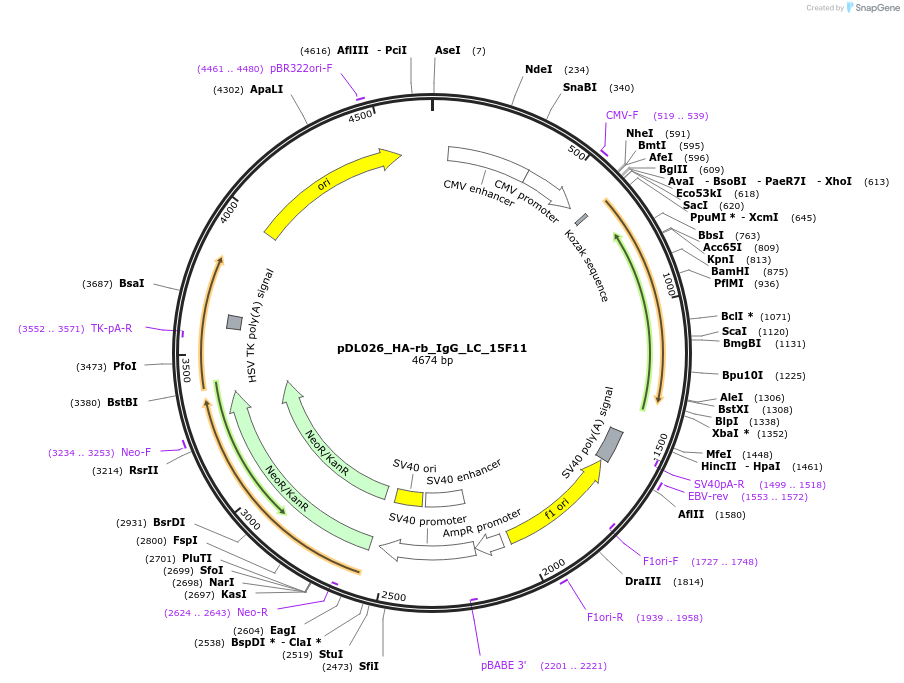

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 193623 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * |
* Log in to view industry pricing.
Backbone
-
Vector backbonepEGFP-N1
-
Backbone manufacturerclontech
- Backbone size w/o insert (bp) 3952
- Total vector size (bp) 4674
-
Modifications to backbonepEGFP was digested with Sac1 and Not1 during cloning to remove the GFP tag. The Not1 restriction site was also mutated.
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameAnti-HA_15F11 rabbit light chain
-
SpeciesSynthetic
-
Insert Size (bp)710
- Promoter CMV
-
Tag
/ Fusion Protein
- signal peptide (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-For
- 3′ sequencing primer SV40pA-Rev (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDL026_HA-rb_IgG_LC_15F11 was a gift from Jennifer DeLuca (Addgene plasmid # 193623 ; http://n2t.net/addgene:193623 ; RRID:Addgene_193623) -
For your References section:
Generation and diversification of recombinant monoclonal antibodies. DeLuca KF, Mick JE, Ide AH, Lima WC, Sherman L, Schaller KL, Anderson SM, Zhao N, Stasevich TJ, Varma D, Nilsson J, DeLuca JG. Elife. 2021 Dec 31;10. pii: 72093. doi: 10.7554/eLife.72093. 10.7554/eLife.72093 PubMed 34970967
