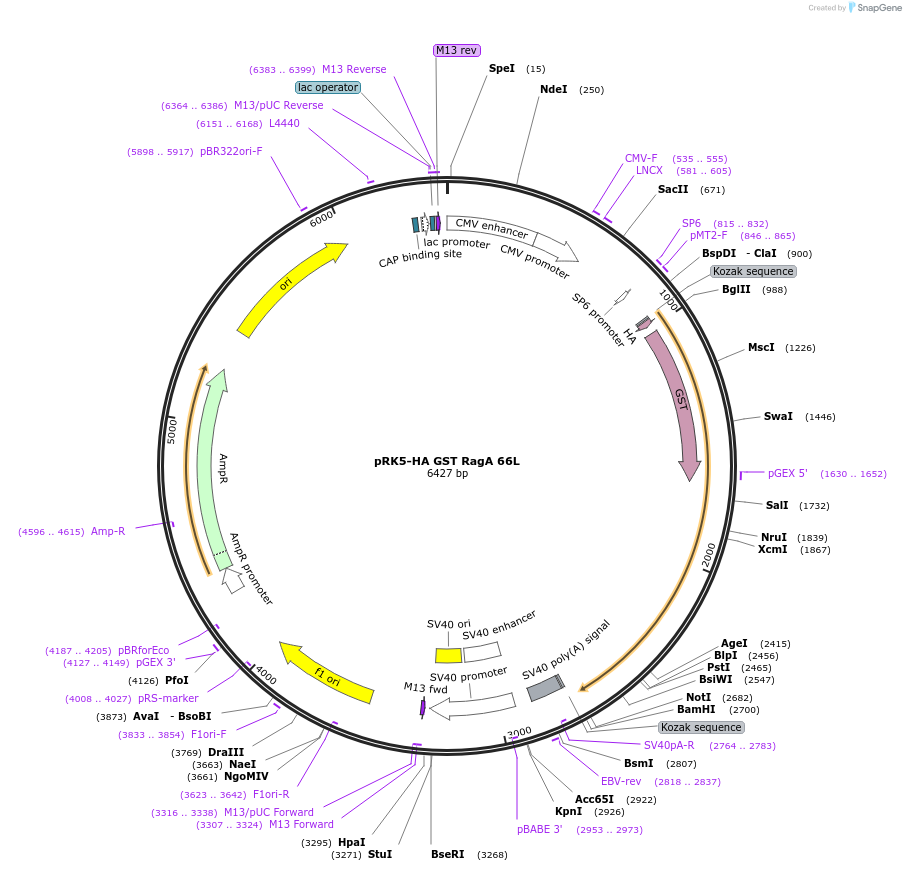

pRK5-HA GST RagA 66L
(Plasmid #19300)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 19300 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pRK5
  • Backbone manufacturer
    BD PharMingen
  • Backbone size w/o insert (bp) 4754
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Ras-related GTP binding A
  • Alt name
    RRAGA
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1610
  • Mutation
    Q66L
  • Entrez Gene
    RRAGA (a.k.a. FIP-1, FIP1, RAGA)
  • Tags / Fusion Proteins
    • HA (N terminal on backbone)
    • GST (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (not destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer SP6, pGEX 5'
  • 3′ sequencing primer pBABE 3'
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRK5-HA GST RagA 66L was a gift from David Sabatini (Addgene plasmid # 19300 ; http://n2t.net/addgene:19300 ; RRID:Addgene_19300)

  • For your References section:

    The Rag GTPases bind raptor and mediate amino acid signaling to mTORC1. Sancak Y, Peterson TR, Shaul YD, Lindquist RA, Thoreen CC, Bar-Peled L, Sabatini DM. Science. 2008 Jun 13. 320(5882):1496-501. 10.1126/science.1157535 PubMed 18497260
