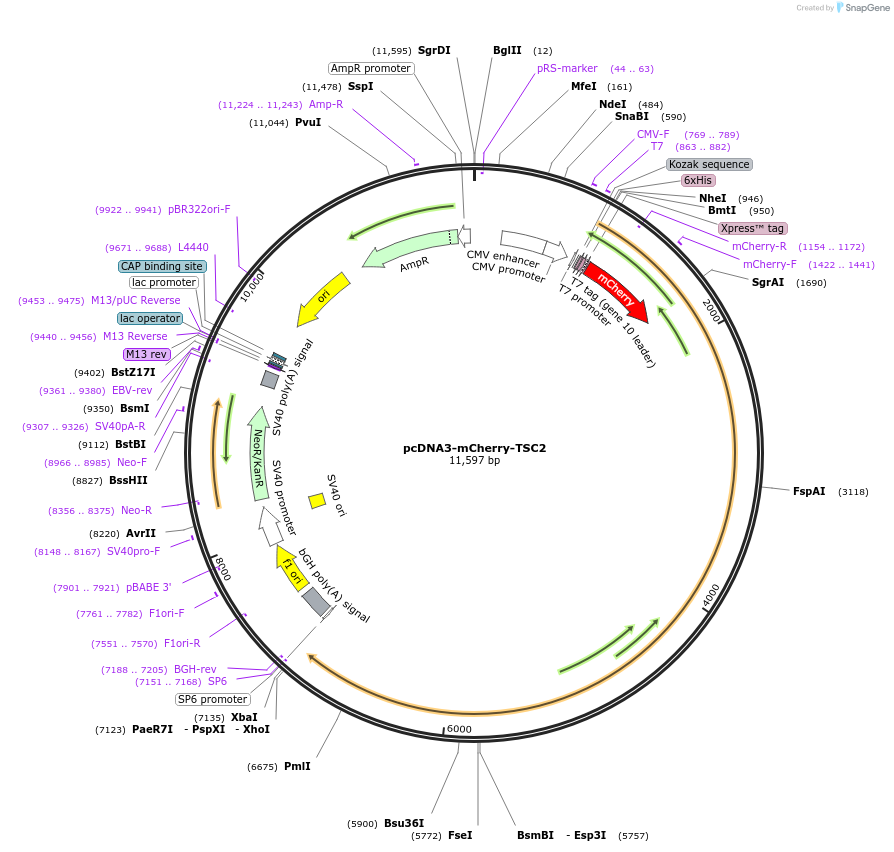

pcDNA3-mCherry-TSC2
(Plasmid #192440)

• Purpose: Encodes mCherry-tagged wild-type TSC2 isoform 5.
• Depositing Lab: Jin Zhang
• Publication: Zhong et al Cell Chem Biol. 2022 Jun 16;29(6):1037-1045.e4. doi: 10.1016/j.chembiol.2022.02.006. Epub 2022 Mar 15.

Backbone

• Vector backbone: pcDNA3
• Backbone size w/o insert (bp): 5517
• Total vector size (bp): 11598
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: mCherry-TSC2
• Species: H. sapiens (human)
• Insert Size (bp): 6081
• Entrez Gene: TSC2 (a.k.a. LAM, PPP1R160, TSC4)
• Promoter: CMV
• Tags / Fusion Proteins:
  • 6xHIS - T7 tag (gene 10 leader) - Xpress (TM) tag (N terminal on backbone)
  • mCherry (N terminal on insert)

Cloning Information

• Cloning method: Gibson Cloning
• 5′ sequencing primer: CMV forward
• 3′ sequencing primer: BGH reverse

Resource Information

• Supplemental Documents:
  • pcDNA3-mCherry-TSC2.gbk
• A portion of this plasmid was derived from a plasmid made by: TSC2 cDNA was provided by Brendan Manning (Addgene Plasmid #14129)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry
