pTarget-RFP-GFP operon
(Plasmid
#192279)
-
PurposeRFP GFP fusion protein expressed under a constitutive promoter
-
Depositing Lab
-

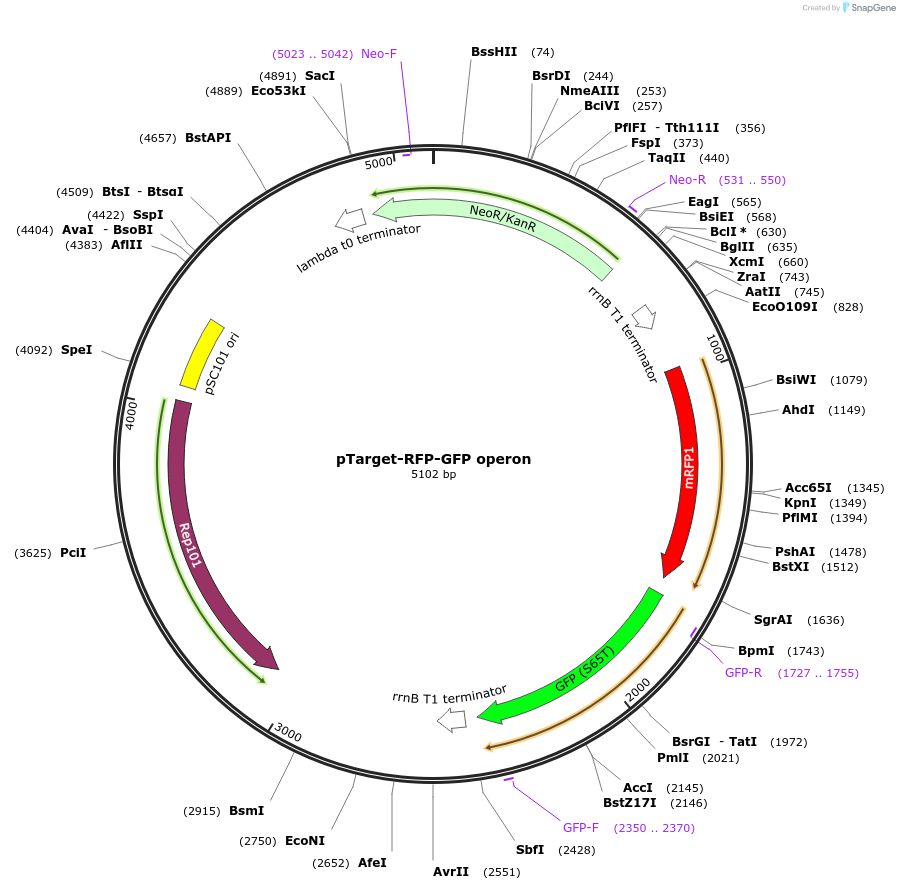

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 192279 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepAU66
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameRFP GFP
-
SpeciesSynthetic
- Promoter PlacIq
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (destroyed during cloning)
- 3′ cloning site None (unknown if destroyed)
- 5′ sequencing primer GTCGAGTgcaaaacctttcgcggtatggcA (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTarget-RFP-GFP operon was a gift from John van der Oost (Addgene plasmid # 192279 ; http://n2t.net/addgene:192279 ; RRID:Addgene_192279) -
For your References section:
The miniature CRISPR-Cas12m effector binds DNA to block transcription. Wu WY, Mohanraju P, Liao C, Adiego-Perez B, Creutzburg SCA, Makarova KS, Keessen K, Lindeboom TA, Khan TS, Prinsen S, Joosten R, Yan WX, Migur A, Laffeber C, Scott DA, Lebbink JHG, Koonin EV, Beisel CL, van der Oost J. Mol Cell. 2022 Dec 1;82(23):4487-4502.e7. doi: 10.1016/j.molcel.2022.11.003. Epub 2022 Nov 24. 10.1016/j.molcel.2022.11.003 PubMed 36427491
