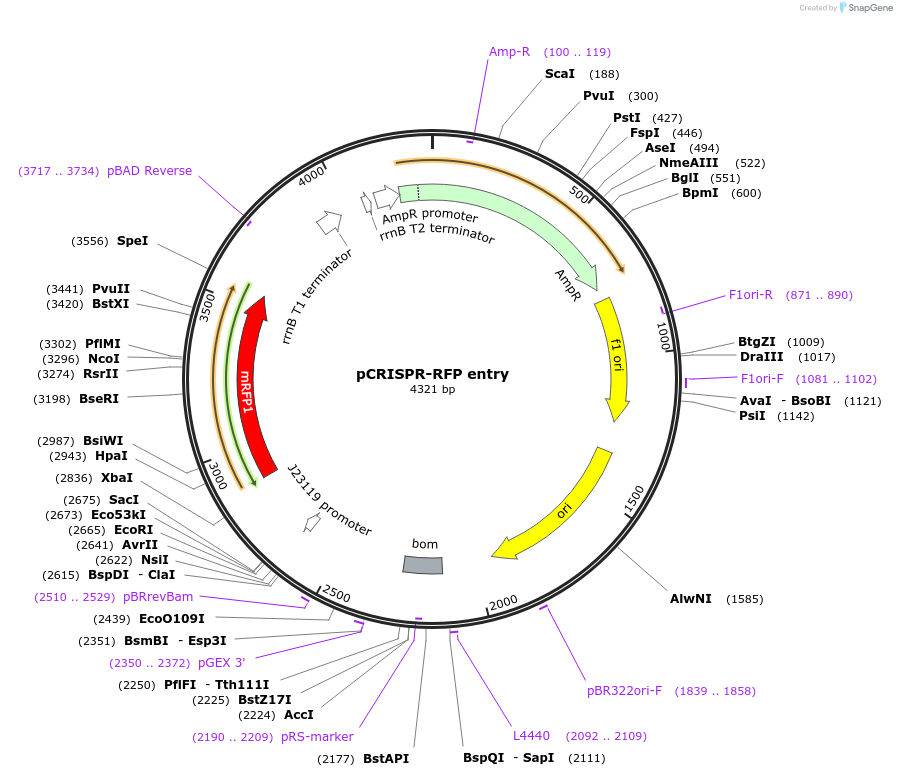

pCRISPR-RFP entry
(Plasmid #192278)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 192278 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pBAD18
  • Vector type
    Bacterial Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    RFP flanked by type V-M CRISPR repeat sequences
  • Species
    Synthetic
  • Insert Size (bp)
    1058
  • Promoter PJ23119

Cloning Information

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Digestion with BbsI removes RFP and can be replaced with desired spacer sequence.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCRISPR-RFP entry was a gift from John van der Oost (Addgene plasmid # 192278 ; http://n2t.net/addgene:192278 ; RRID:Addgene_192278)

  • For your References section:

    The miniature CRISPR-Cas12m effector binds DNA to block transcription. Wu WY, Mohanraju P, Liao C, Adiego-Perez B, Creutzburg SCA, Makarova KS, Keessen K, Lindeboom TA, Khan TS, Prinsen S, Joosten R, Yan WX, Migur A, Laffeber C, Scott DA, Lebbink JHG, Koonin EV, Beisel CL, van der Oost J. Mol Cell. 2022 Dec 1;82(23):4487-4502.e7. doi: 10.1016/j.molcel.2022.11.003. Epub 2022 Nov 24. 10.1016/j.molcel.2022.11.003 PubMed 36427491
