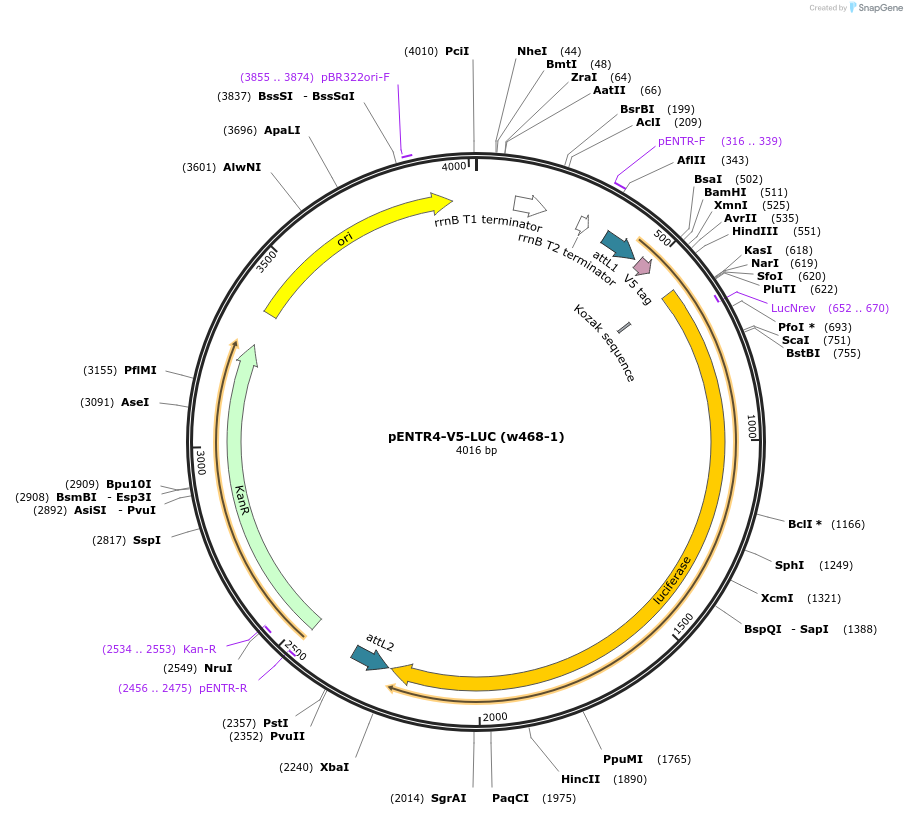

pENTR4-V5-LUC (w468-1)
(Plasmid #19135)

• Purpose: Gateway entry vector, V5-Luciferase
• Depositing Labs: Eric Campeau, Paul Kaufman
• Publication: Campeau et al PLoS One. 2009 Aug 6;4(8):e6529.

Backbone

• Vector backbone: pENTR4
• Backbone manufacturer: Invitrogen
• Backbone size w/o insert (bp): 2364
• Vector type: Entry vector

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Growth instructions: TOP10F'
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Firefly Luciferase
• Insert Size (bp): 1652
• Tag / Fusion Protein:
  • V5 (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: Bam HI (not destroyed)
• 3′ cloning site: Xba I (not destroyed)
• 5′ sequencing primer: ENTRforw
• 3′ sequencing primer: ENTRrev

Resource Information

• A portion of this plasmid was derived from a plasmid made by: Luciferase gene derived from the pGL3 plasmid (Promega)
• Articles Citing this Plasmid:
  • 3 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry
