pcDNA3.3_SARS2_omicron_BA.2.75
(Plasmid #190674)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 190674 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

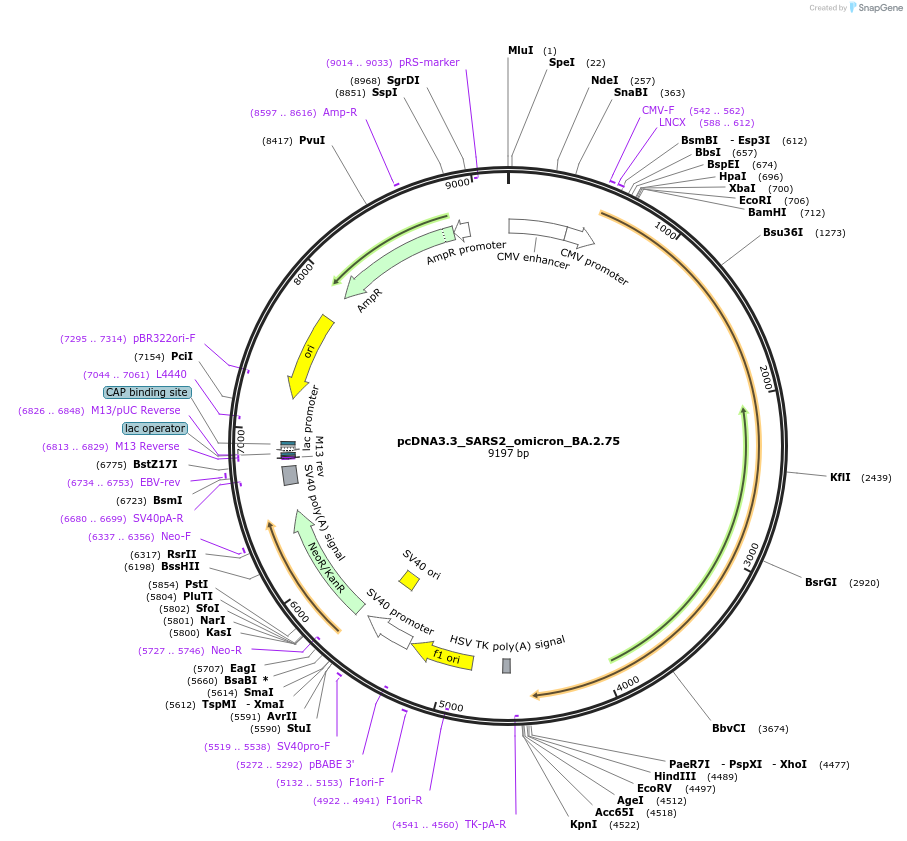

Backbone

  • Vector backbone
    pcDNA3.3
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 9200
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Spike
  • Alt name
    BA.2.75 (omicron variant)
  • Species
    SARS-CoV-2
  • Insert Size (bp)
    3800
  • Mutation
    K147E, W152R, F157L, I210V, G257S, D339H, G446S, N460K, Q493R (on the basis of BA.2), c-terminal 18aa deletion
  • Entrez Gene
    S (a.k.a. GU280_gp02, spike glycoprotein)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer TK_pA-R
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    RBD fragment synthesized by Burton lab

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.3_SARS2_omicron_BA.2.75 was a gift from David Nemazee (Addgene plasmid # 190674 ; http://n2t.net/addgene:190674 ; RRID:Addgene_190674)

  • For your References section:

    Rare, convergent antibodies targeting the stem helix broadly neutralize diverse betacoronaviruses. Dacon C, Peng L, Lin TH, Tucker C, Lee CD, Cong Y, Wang L, Purser L, Cooper AJR, Williams JK, Pyo CW, Yuan M, Kosik I, Hu Z, Zhao M, Mohan D, Peterson M, Skinner J, Dixit S, Kollins E, Huzella L, Perry D, Byrum R, Lembirik S, Murphy M, Zhang Y, Yang ES, Chen M, Leung K, Weinberg RS, Pegu A, Geraghty DE, Davidson E, Doranz BJ, Douagi I, Moir S, Yewdell JW, Schmaljohn C, Crompton PD, Mascola JR, Holbrook MR, Nemazee D, Wilson IA, Tan J. Cell Host Microbe. 2022 Nov 4. pii: S1931-3128(22)00523-6. doi: 10.1016/j.chom.2022.10.010. 10.1016/j.chom.2022.10.010 PubMed 36347257
