binder/tag-WT-FAK-insertionB
(Plasmid #190440)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 190440 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

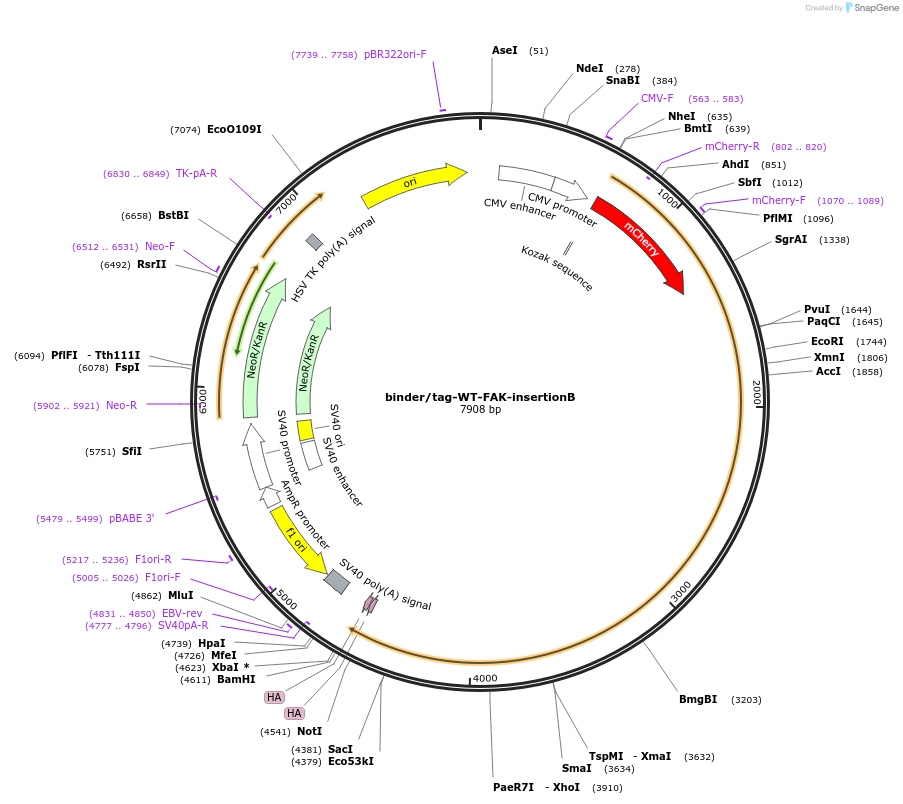

Backbone

  • Vector backbone
    pmCherry-c1
  • Total vector size (bp) 7932
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    FAK
  • Species
    M. musculus (mouse)
  • Mutation
    SsrA inserted after aa 405
  • Entrez Gene
    Ptk2 (a.k.a. FADK 1, FAK, FRNK, Fadk, p125FAK)
  • Tag / Fusion Protein
    • mCherry (N terminal on insert)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    binder/tag-WT-FAK-insertionB was a gift from Klaus Hahn (Addgene plasmid # 190440 ; http://n2t.net/addgene:190440 ; RRID:Addgene_190440)

  • For your References section:

    Biosensors based on peptide exposure show single molecule conformations in live cells. Liu B, Stone OJ, Pablo M, Herron JC, Nogueira AT, Dagliyan O, Grimm JB, Lavis LD, Elston TC, Hahn KM. Cell. 2021 Oct 28;184(22):5670-5685.e23. doi: 10.1016/j.cell.2021.09.026. Epub 2021 Oct 11. 10.1016/j.cell.2021.09.026 PubMed 34637702
