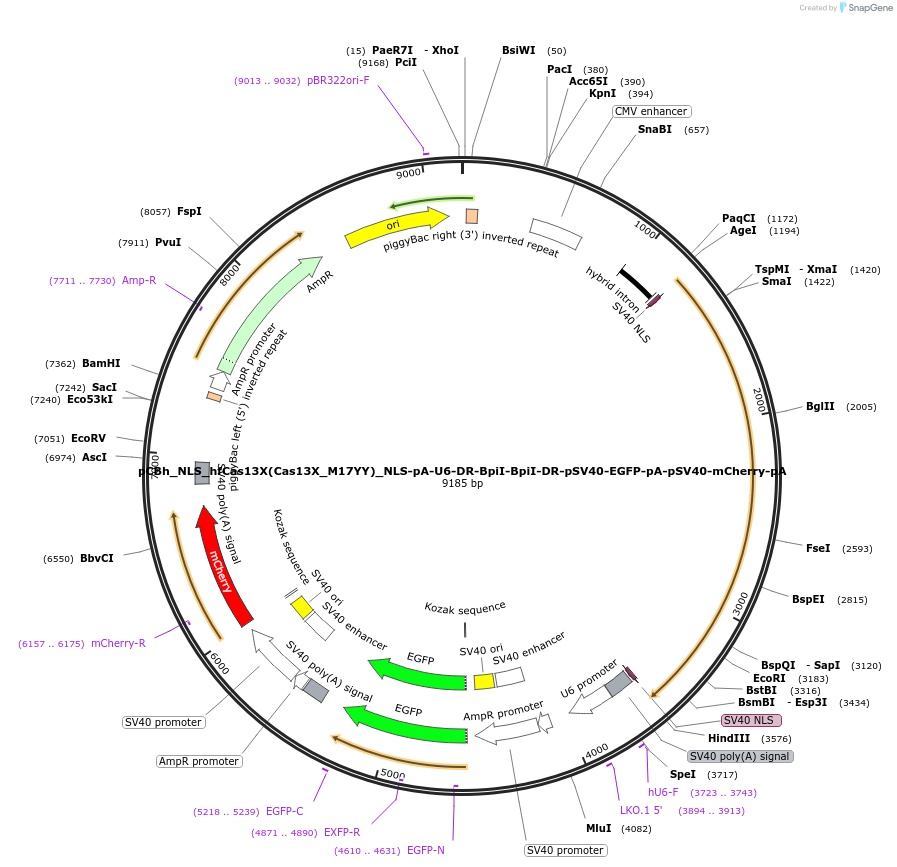

pCBh_NLS_hfCas13X(Cas13X_M17YY)_NLS-pA-U6-DR-BpiI-BpiI-DR-pSV40-EGFP-pA-pSV40-mCherry-pA
(Plasmid
#190033)
-
Purposevector for encoding a human codon-optimized High-fidelity Cas13X (hfCas13X) driven by CBh promoter, guide RNAs compatible with Cas13X driven by hU6, EGFP and mCherry driven by SV40 promoters
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 190033 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepiggyBac-CBh
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehumanized hfCas13X
-
SpeciesSynthetic
-
MutationY672A,Y676A
- Promoter CBh, SV40, hU6
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer Unknown (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCBh_NLS_hfCas13X(Cas13X_M17YY)_NLS-pA-U6-DR-BpiI-BpiI-DR-pSV40-EGFP-pA-pSV40-mCherry-pA was a gift from Huawei Tong (Addgene plasmid # 190033 ; http://n2t.net/addgene:190033 ; RRID:Addgene_190033) -
For your References section:
High-fidelity Cas13 variants for targeted RNA degradation with minimal collateral effects. Tong H, Huang J, Xiao Q, He B, Dong X, Liu Y, Yang X, Han D, Wang Z, Wang X, Ying W, Zhang R, Wei Y, Xu C, Zhou Y, Li Y, Cai M, Wang Q, Xue M, Li G, Fang K, Zhang H, Yang H. Nat Biotechnol. 2022 Aug 11. pii: 10.1038/s41587-022-01419-7. doi: 10.1038/s41587-022-01419-7. 10.1038/s41587-022-01419-7 PubMed 35953673
