pCDNA3.1(+)-NEMOb
(Plasmid #189934)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 189934 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

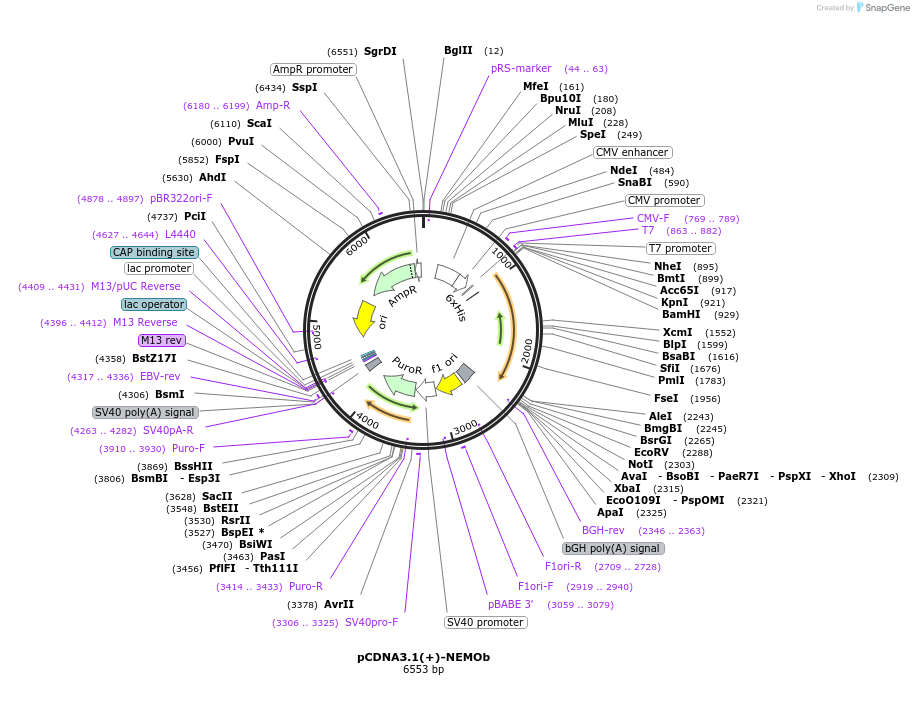

Backbone

  • Vector backbone
    pcDNA3.1(+)
  • Backbone size w/o insert (bp) 5222
  • Total vector size (bp) 6556
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NEMOb
  • Species
    Synthetic
  • Insert Size (bp)
    1335
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer taatacgactcactataggg
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2022.08.23.504677 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCDNA3.1(+)-NEMOb was a gift from Yubin Zhou (Addgene plasmid # 189934 ; http://n2t.net/addgene:189934 ; RRID:Addgene_189934)

  • For your References section:

    Engineering of NEMO as calcium indicators with large dynamics and high sensitivity. Li J, Shang Z, Chen JH, Gu W, Yao L, Yang X, Sun X, Wang L, Wang T, Liu S, Li J, Hou T, Xing D, Gill DL, Li J, Wang SQ, Hou L, Zhou Y, Tang AH, Zhang X, Wang Y. Nat Methods. 2023 Jun;20(6):918-924. doi: 10.1038/s41592-023-01852-9. 10.1038/s41592-023-01852-9 PubMed 37081094
