pDRESS_mTurquoise2_spatial-linker-P2A_mScarlet-I3
(Plasmid
#189755)
-
PurposeProduces an mTurquoise-antiFRET-mScarlet-I3 fusion protein in bacteria and in mamallian cells it produces 1:1 unfused mTurquoise2 and mScarlet-I3 FPs for ratiometric analysis
-
Depositing Lab
-

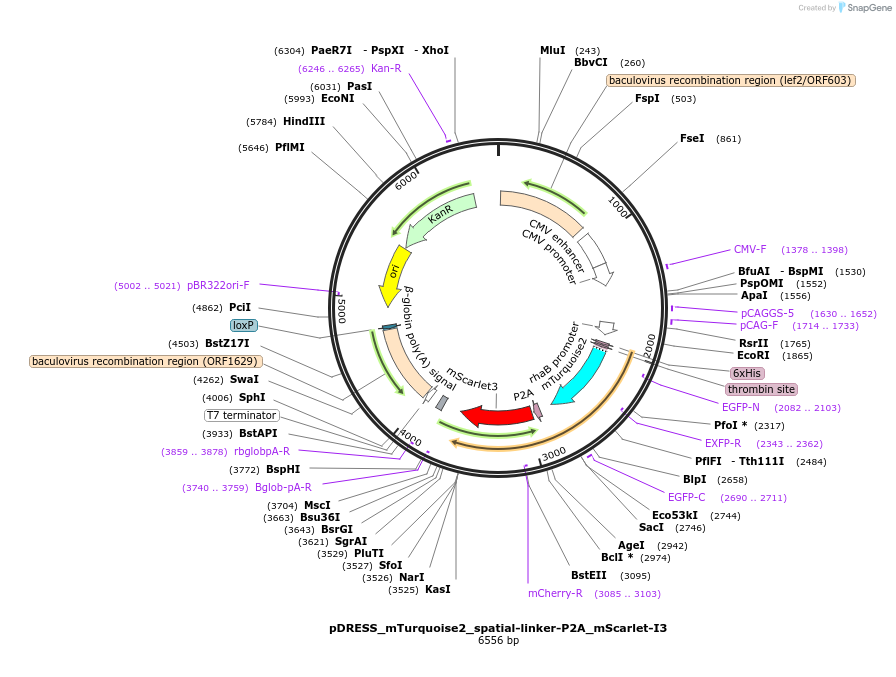

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 189755 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepTriEx-3
-
Vector typeMammalian Expression, Bacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemTurquoise2_spatial-linker-P2A_mScarlet-I3
-
SpeciesSynthetic
- Promoter CMV & Rha
-
Tag
/ Fusion Protein
- 6xHis (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDRESS_mTurquoise2_spatial-linker-P2A_mScarlet-I3 was a gift from Dorus Gadella (Addgene plasmid # 189755 ; http://n2t.net/addgene:189755 ; RRID:Addgene_189755) -
For your References section:
mScarlet3: a brilliant and fast-maturing red fluorescent protein. Gadella TWJ Jr, van Weeren L, Stouthamer J, Hink MA, Wolters AHG, Giepmans BNG, Aumonier S, Dupuy J, Royant A. Nat Methods. 2023 Apr;20(4):541-545. doi: 10.1038/s41592-023-01809-y. Epub 2023 Mar 27. 10.1038/s41592-023-01809-y PubMed 36973546
