Addgene

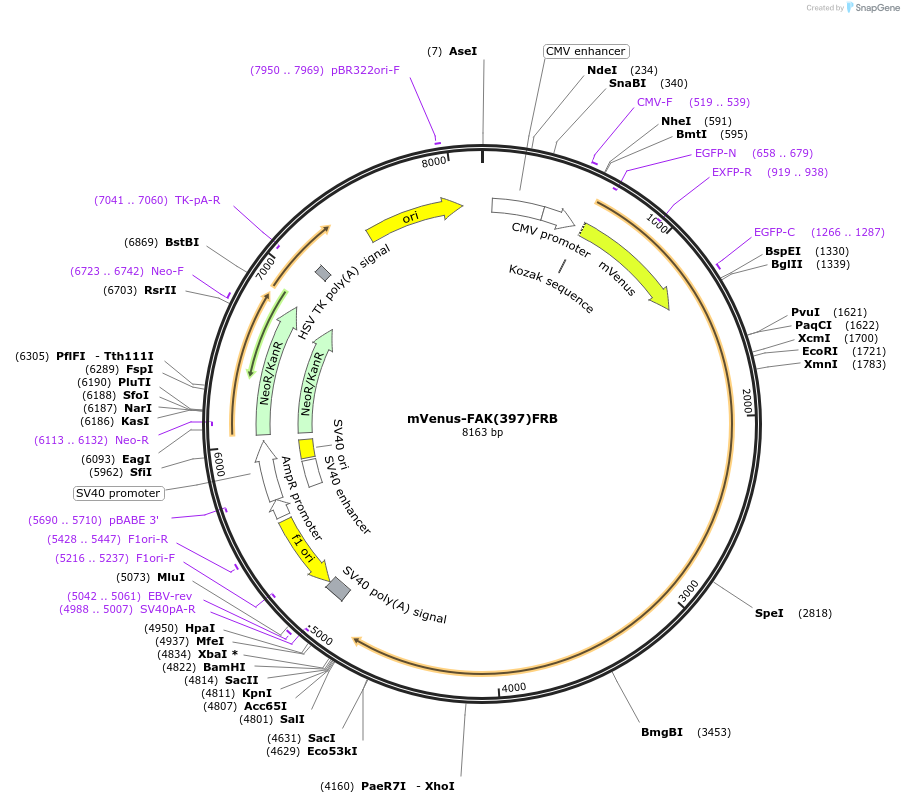

mVenus-FAK(397)FRB
(Plasmid #188660)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 188660 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pmVenus-C1
  • Backbone size w/o insert (bp) 4693
  • Total vector size (bp) 8163
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Focal Adhesion Kinase
  • Alt name
    FAK
  • Insert Size (bp)
    3452
  • Mutation
    Insertion of FRB at Tyrosine 397
  • Promoter CMV
  • Tag / Fusion Protein
    • mVenus (N terminal on backbone)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer GAAATTTGTGATGCTATTGC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mVenus-FAK(397)FRB was a gift from Andrei Karginov (Addgene plasmid # 188660 ; http://n2t.net/addgene:188660 ; RRID:Addgene_188660)
  • For your References section:

    Dissecting protein tyrosine phosphatase signaling by engineered chemogenetic control of its activity. Fauser J, Huyot V, Matsche J, Szynal BN, Alexeev Y, Kota P, Karginov AV. J Cell Biol. 2022 Aug 1;221(8). pii: 213352. doi: 10.1083/jcb.202111066. Epub 2022 Jul 13. 10.1083/jcb.202111066 PubMed 35829702
