rtTA-sg-mGreenLantern332
(Plasmid
#188483)
-
PurposegRNA plasmid with neomycin resistance expressing a single guide RNA targeting mGreenLantern fluorescent protein site 332.
-
Depositing Labs
-

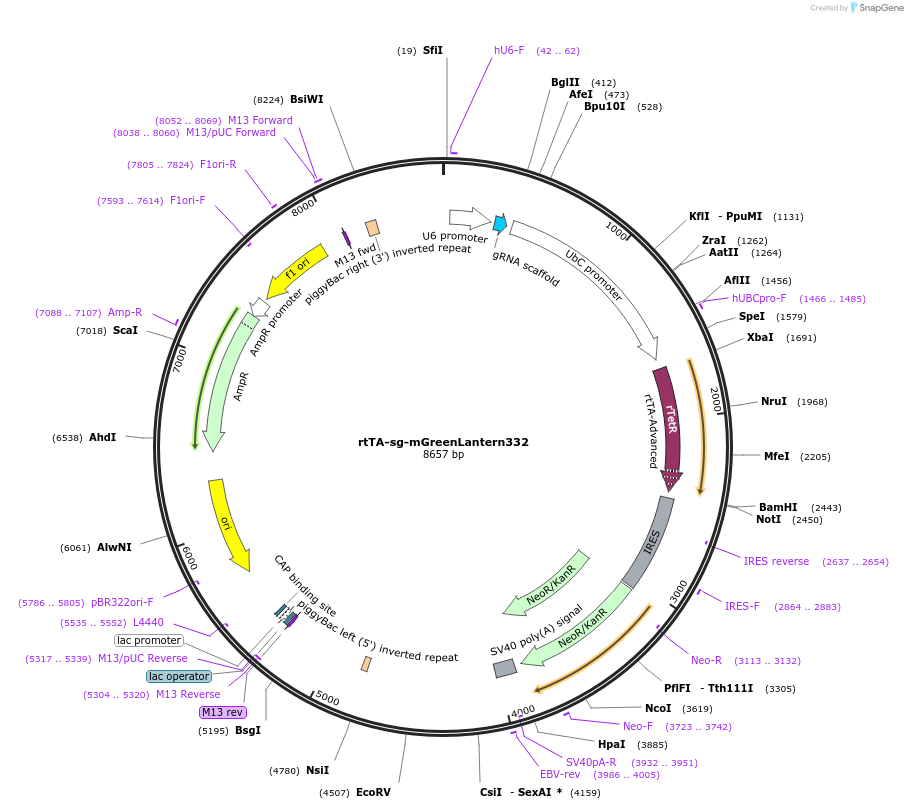

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 188483 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonePB_rtTA_BsmBI
-
Backbone manufacturerSystem Biosciences
- Backbone size w/o insert (bp) 8652
-
Vector typeMammalian Expression, CRISPR
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemGreenLantern sgRNA
-
Alt namemonomeric green lantern single guide RNA
-
gRNA/shRNA sequencetacctacaagacccgcgccg
-
SpeciesSynthetic
-
Insert Size (bp)21
-
MutationNone
- Promoter U6
-
Tag
/ Fusion Protein
- PB_rtTA_BsmBI (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
- 5′ sequencing primer GAG GGC CTA TTT CCC ATG ATT (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This plasmid was cloned with the one step BsmBI restriction enzyme cloning method. Please note that gRNA sequences that do not start with a G, need a G added to the sequence before cloning for U6 promoter transcription.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
rtTA-sg-mGreenLantern332 was a gift from Indeever Madireddy & Johan Sosa (Addgene plasmid # 188483 ; http://n2t.net/addgene:188483 ; RRID:Addgene_188483) -
For your References section:
Stably Integrating an Inducible CRISPR-Cas9 to Protect Against Viral Infections in Vitro. Madireddy I, Pierson Smela M. MicroPubl Biol. 2022 Jun 16;2022. doi: 10.17912/micropub.biology.000590. eCollection 2022. 10.17912/micropub.biology.000590 PubMed 35789697
