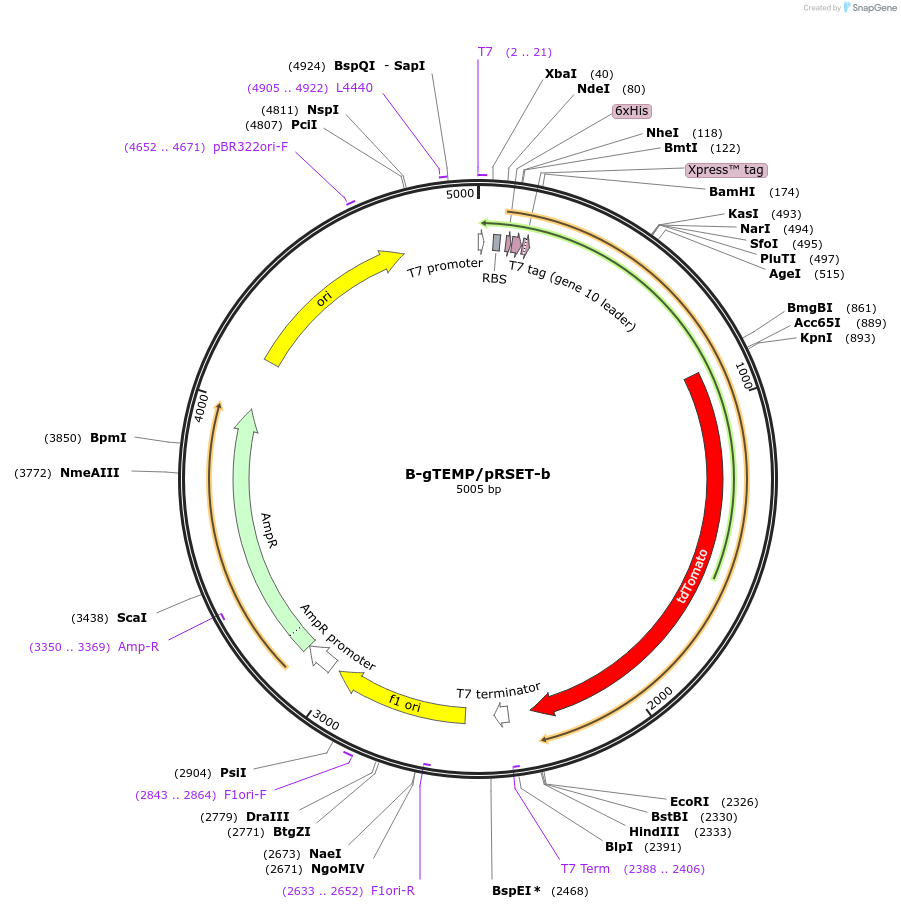

B-gTEMP/pRSET-b
(Plasmid #188446)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 188446 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pRSET-b
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    B-gTEMP
  • Species
    Synthetic
  • Insert Size (bp)
    2145
  • Tag / Fusion Protein
    • 6xHis-tag (N terminal on backbone)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    B-gTEMP/pRSET-b was a gift from Takeharu Nagai (Addgene plasmid # 188446 ; http://n2t.net/addgene:188446 ; RRID:Addgene_188446)
  • For your References section:

    Intracellular Heat Transfer and Thermal Property Revealed by Kilohertz Temperature Imaging with a Genetically Encoded Nanothermometer. Lu K, Wazawa T, Sakamoto J, Vu CQ, Nakano M, Kamei Y, Nagai T. Nano Lett. 2022 Jul 27;22(14):5698-5707. doi: 10.1021/acs.nanolett.2c00608. Epub 2022 Jul 6. 10.1021/acs.nanolett.2c00608 PubMed 35792763
