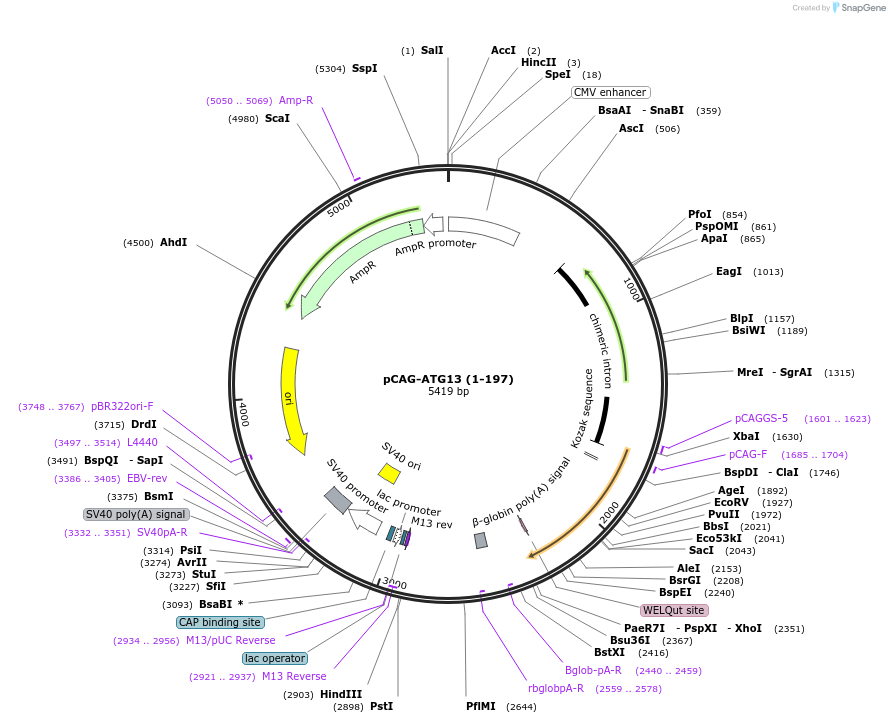

pCAG-ATG13 (1-197)
(Plasmid #188074)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 188074 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCAG
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ATG13
  • Alt name
    codon-optimized ATG13 (1-197) (no tag)-stop
  • Species
    H. sapiens (human)
  • Mutation
    codon-optimized ATG13 (1-197)
  • Entrez Gene
    ATG13 (a.k.a. KIAA0652, PARATARG8)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ClaI (unknown if destroyed)
  • 3′ cloning site XhoI (unknown if destroyed)
  • 5′ sequencing primer CTT CTT CTT TTT CCT ACA GCT CCT GGG C
  • 3′ sequencing primer gagccagggcattggccacac
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG-ATG13 (1-197) was a gift from James Hurley (Addgene plasmid # 188074 ; http://n2t.net/addgene:188074 ; RRID:Addgene_188074)

  • For your References section:

    Structural basis for ATG9A recruitment to the ULK1 complex in mitophagy initiation. Ren X, Nguyen TN, Lam WK, Buffalo CZ, Lazarou M, Yokom AL, Hurley JH. Sci Adv. 2023 Feb 15;9(7):eadg2997. doi: 10.1126/sciadv.adg2997. Epub 2023 Feb 15. 10.1126/sciadv.adg2997 PubMed 36791199
