pHRi_1G4 hTCRβ-SNAP
(Plasmid #187604)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 187604 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

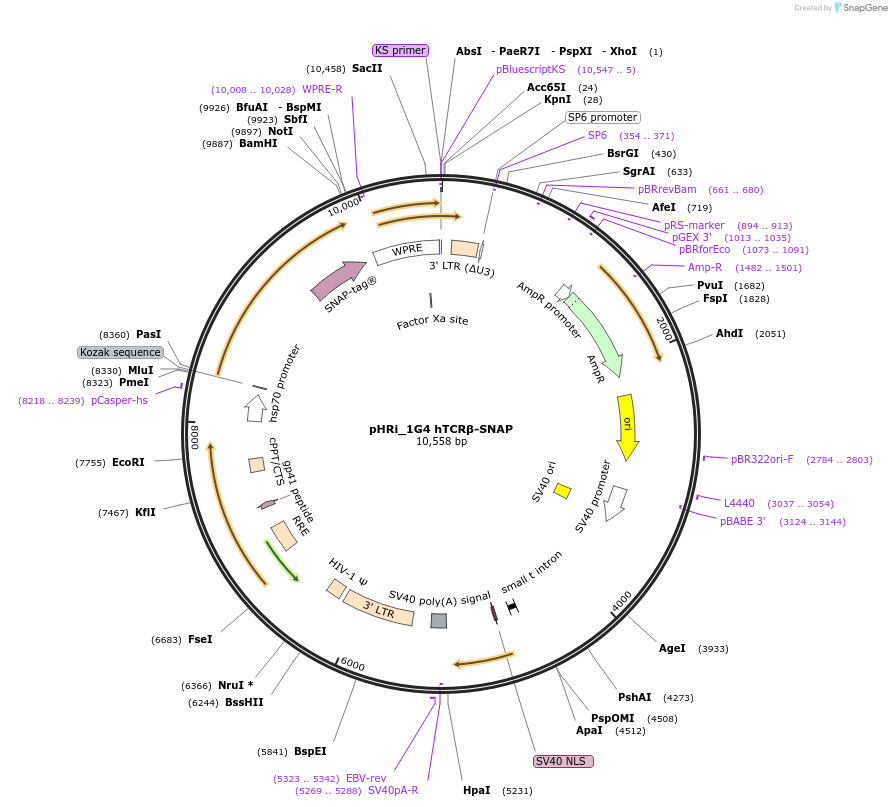

Backbone

  • Vector backbone
    pHRi
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    1G4 hTCR beta, and SNAP tag
  • Species
    H. sapiens (human)
  • Entrez Gene
    TRB (a.k.a. TCRB, TRB@)
  • Promoter mHSP

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site MluI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CAACAAGTTACCGAGAAAGAAGAACTCAC
  • 3′ sequencing primer CCACATAGCGTAAAAGGAGC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHRi_1G4 hTCRβ-SNAP was a gift from Simon Davis (Addgene plasmid # 187604 ; http://n2t.net/addgene:187604 ; RRID:Addgene_187604)

  • For your References section:

    Structure of a fully assembled tumor-specific T cell receptor ligated by pMHC. Susac L, Vuong MT, Thomas C, von Bulow S, O'Brien-Ball C, Santos AM, Fernandes RA, Hummer G, Tampe R, Davis SJ. Cell. 2022 Aug 18;185(17):3201-3213.e19. doi: 10.1016/j.cell.2022.07.010. 10.1016/j.cell.2022.07.010 PubMed 35985289
