Addgene

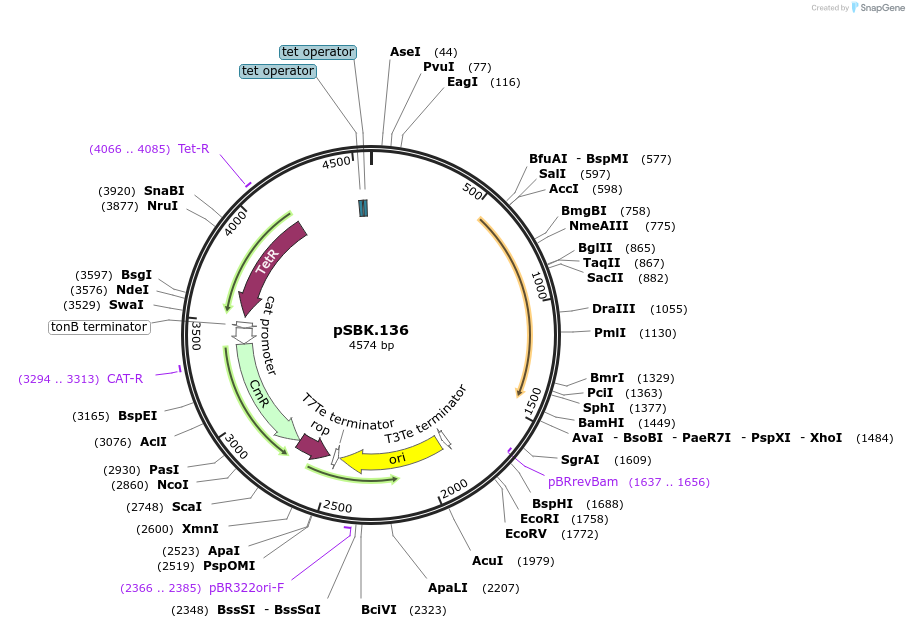

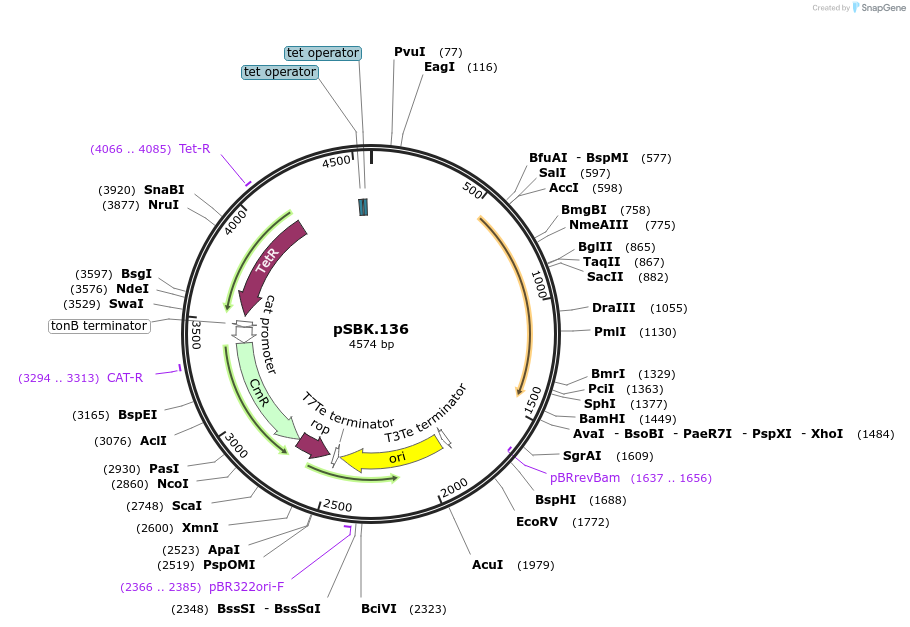

pSBK.136
(Plasmid #187220)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 187220 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSol
  • Backbone manufacturer
    Lucigen
  • Backbone size w/o insert (bp) 1807
  • Total vector size (bp) 4574
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Retron Eco1 ncRNA v35 (long a1/a2); Retron Eco1 ncRNA v35 (long a1/a2, barcode 6)
  • Insert Size (bp)
    2767
  • Promoter A: pSalTTC; B: pTet*

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer A: CGCGTCCGAACCCAGCT; B: AAAGCCTCCGGTCGGAGG
  • 3′ sequencing primer A: CACCCGTGAAGGTGAGCC; B: CAGCCAACGATCGTTAAGCGAA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2021.08.11.455990 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSBK.136 was a gift from Seth Shipman (Addgene plasmid # 187220 ; http://n2t.net/addgene:187220 ; RRID:Addgene_187220)

  • For your References section:

    Recording gene expression order in DNA by CRISPR addition of retron barcodes. Bhattarai-Kline S, Lear SK, Fishman CB, Lopez SC, Lockshin ER, Schubert MG, Nivala J, Church GM, Shipman SL. Nature. 2022 Aug;608(7921):217-225. doi: 10.1038/s41586-022-04994-6. Epub 2022 Jul 27. 10.1038/s41586-022-04994-6 PubMed 35896746
