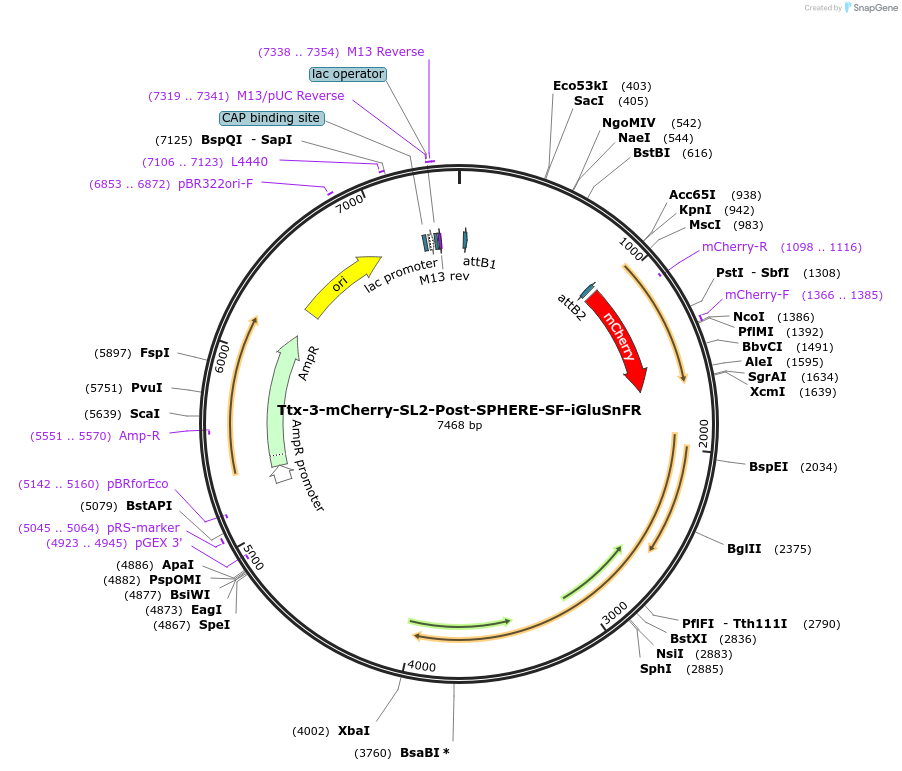

Ttx-3-mCherry-SL2-Post-SPHERE-SF-iGluSnFR
(Plasmid #187100)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 187100 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pDEST
  • Backbone size w/o insert (bp) 4419
  • Vector type
    Worm Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Post-SPHERE-SF-iGluSnFR
  • Species
    Synthetic
  • Insert Size (bp)
    3049
  • Promoter Ttx-3
  • Tag / Fusion Protein
    • mCherry-SL2 (N terminal on insert)

Cloning Information

  • Cloning method Gateway Cloning

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Loren Looger, Robert Campbell and Bong-Kiun Kaang, Addgene #106202, #107337, #107335, #111585

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Ttx-3-mCherry-SL2-Post-SPHERE-SF-iGluSnFR was a gift from Kotaro Oka (Addgene plasmid # 187100 ; http://n2t.net/addgene:187100 ; RRID:Addgene_187100)

  • For your References section:

    Genetically encoded sensors for analysing neurotransmission among synaptically-connected neurons. Shindo Y, Ashida K, Masamoto K, Takuwa H, Takahashi M, Higuchi M, Ide R, Hotta K, Oka K. bioRxiv 2022 10.1101/2022.04.03.486903
