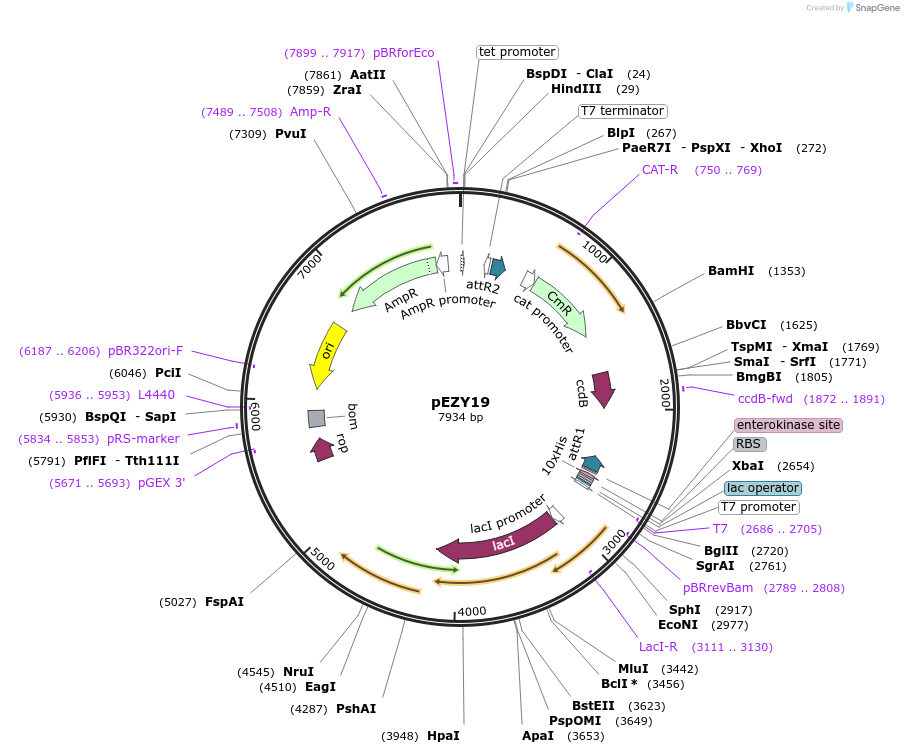

pEZY19
(Plasmid #18668)

• Purpose: (Empty Backbone) pET19b converted Gateway Destination vector for expressing His tagged fusion proteins in bacteria. See note in comments section below regarding the mutated enterokinase site.
• Depositing Lab: Yu-Zhu Zhang
• Publication: Guo et al Biotechnol J. 2008 Mar . 3(3):370-7.

Backbone

• Vector backbone: pET19b
• Backbone manufacturer: Novagen
• Backbone size (bp): 7934
• Modifications to backbone: Gateway cassette was inserted into original vector to create the pEZY19 Gateway Destination vector
• Vector type: Bacterial Expression ; Gateway Destination vector

Growth in Bacteria

• Bacterial Resistance(s): Chloramphenicol and Ampicillin, 25 & 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): DB3.1
• Growth instructions: E.coli strain DB3.1 @ 30C
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: None
• Promoter: T7
• Tag / Fusion Protein:
  • His (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NdeI (destroyed during cloning)
• 3′ cloning site: XhoI (not destroyed)
• 5′ sequencing primer: T7

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

pET19b Gateway-compatible Destination vector. Combine with an Entry clone containing your gene of interest with the Gateway LR reaction to generate an expression clone containing an N-terminal His tag. Note that the Addgene verified sequence detects a mutation in the enterokinase site D(V)DDK.
