pLV-Rtn2b-R60f-mCherry
(Plasmid #186607)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 186607 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

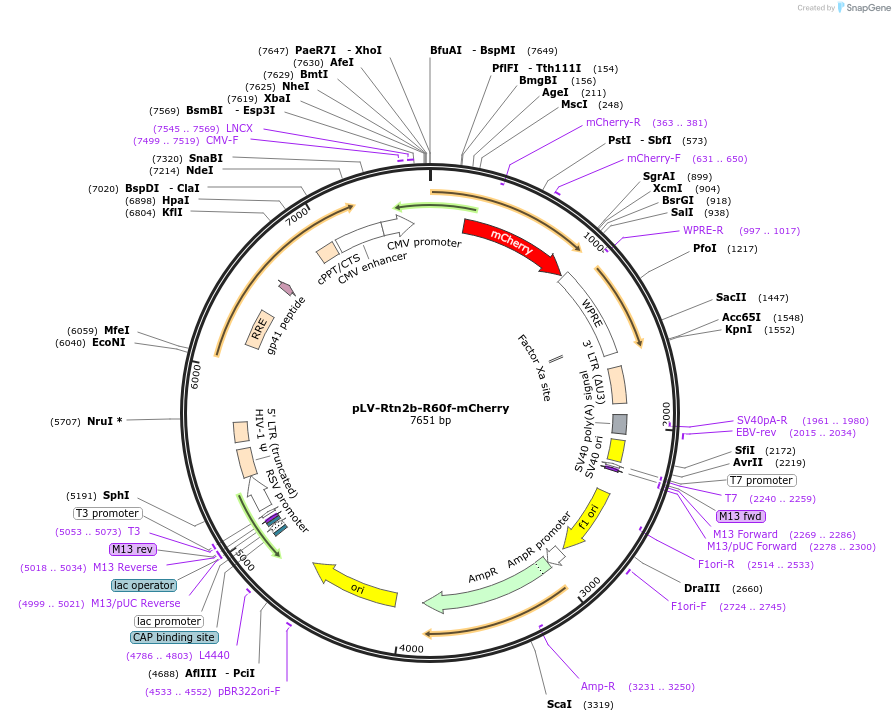

Backbone

  • Vector backbone
    pLV-eGFP_Addgene#36083
  • Total vector size (bp) 7651
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Human Reticulon 2 mutant R60f
  • Alt name
    Rtn2b-R60f
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    207
  • Mutation
    c.178insC (R60f)
  • GenBank ID
    NM_206900.3
  • Entrez Gene
    RTN2 (a.k.a. NSP2, NSPL1, NSPLI, SPG12)
  • Promoter CMV
  • Tag / Fusion Protein
    • mCherry (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer AGTGAACCGTCAGATCGCC
  • 3′ sequencing primer CCGTTCACGGAGCCCTC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLV-Rtn2b-R60f-mCherry was a gift from Gia Voeltz (Addgene plasmid # 186607 ; http://n2t.net/addgene:186607 ; RRID:Addgene_186607)

  • For your References section:

    The ER ladder is a unique morphological feature of developing mammalian axons. Zamponi E, Meehl JB, Voeltz GK. Dev Cell. 2022 Jun 6;57(11):1369-1382.e6. doi: 10.1016/j.devcel.2022.05.002. Epub 2022 May 23. 10.1016/j.devcel.2022.05.002 PubMed 35609616
