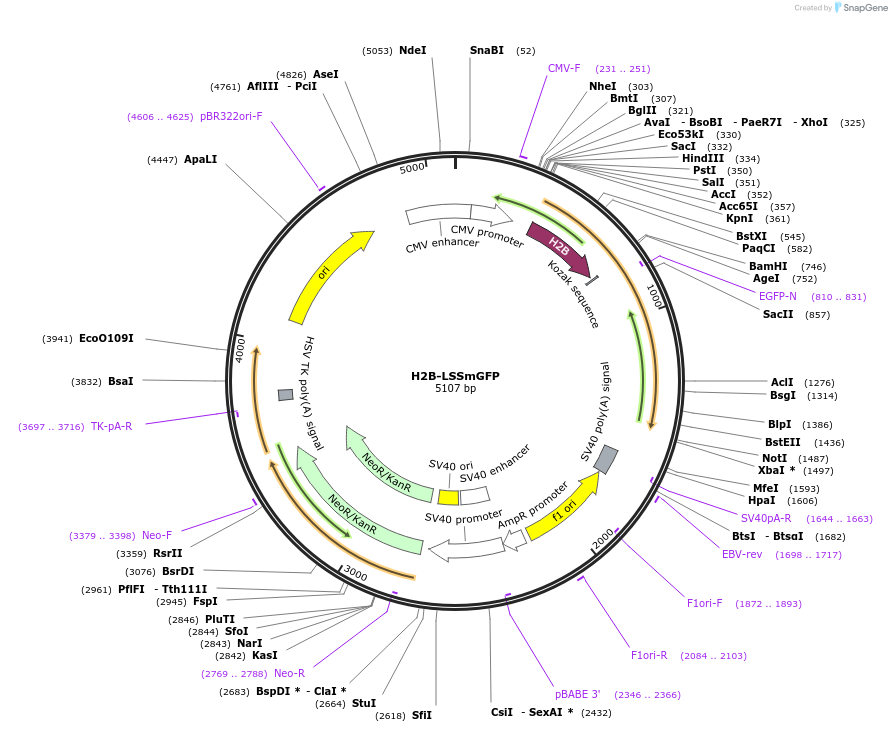

H2B-LSSmGFP
(Plasmid #186539)

• Purpose: Localization of LSSmGFP fluorescent protein (ex/em = 400/510 nm) to histone 2B
• Depositing Lab: Gregory Petsko
• Publication: Campbell et al Nat Methods. 2022 Nov 7. pii: 10.1038/s41592-022-01660-7. doi: 10.1038/s41592-022-01660-7.

Backbone

• Vector backbone: n/a
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: LSSmGFP
• Species: Synthetic
• Insert Size (bp): 720
• Mutation: hfYFP-T43S/G65S/L68Q/H77N/K140N/Y203I/V206K
• Promoter: CMV
• Tag / Fusion Protein:
  • Human Histone 2B (D26G and V119I mutations) (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BshTI (not destroyed)
• 3′ cloning site: NotI (not destroyed)
• 5′ sequencing primer: CMV Forward (CGCAAATGGGCGGTAGGCGTG)
• 3′ sequencing primer: GACATGGACGAGCTGTACAAG

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

400 nm excitation, 510 nm emission.
